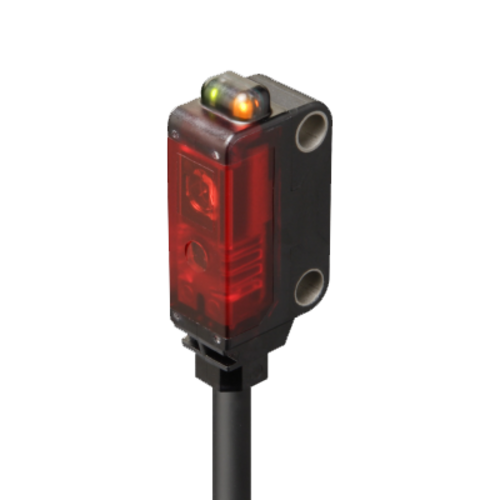

EX-L221 Compact Laser Sensor

EX-L221 Compact Laser Sensor

9580 INR/Number
Get a Price/Quote

Product Details:

  • Measurement Range 45 to 300 mm
  • Cable Type Yes
  • Warranty 1 Year
  • IP Rating IP67 (IEC)
  • Cable Length 2 Meter (m)
  • Sensor Type Spot reflective type
  • Features Amplifier Built-in Ultra-compact Laser Sensor EX-L200
  • Click to View more
Request to Call Back Send Inquiry
X

EX-L221 Compact Laser Sensor Price And Quantity

  • 1 Number
  • 9580 INR/Number

EX-L221 Compact Laser Sensor Product Specifications

  • Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate
  • EX-L221
  • Spot reflective type
  • 2 Meter (m)
  • 1 Year
  • IP67 (IEC)
  • Yes
  • 45 to 300 mm
  • Amplifier Built-in Ultra-compact Laser Sensor
  • NPN open-collector transistor
  • Amplifier Built-in Ultra-compact Laser Sensor
  • 60 Grams (g)
  • Amplifier Built-in Ultra-compact Laser Sensor EX-L200

EX-L221 Compact Laser Sensor Trade Information

  • Cash in Advance (CID)
  • All India

Product Description

Product Number EX-L221
Part Number EX-L221
Products Name Amplifier Built-in Ultra-compact Laser Sensor
Product details Spot reflective type
Output NPN open-collector transistor
Applicable regulations and certifications CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, Chinese Standard GB 7247.1
Sensing range 45 to 300 mm
Emission spot size (Typical) 1 mm
Sensing object Opaque, translucent or transparent object
(Note)Make sure to confirm detection with an actual sensor before use.
Minimum sensing object (Typical) Gold wire of 0.01 mm0.0004 in
Hysteresis 20 % or less of operation distance
Repeatability Perpendicular to sensing axis: 0.05 mm0.0020 inor less
Repeatability (Typical)(perpendicular to sensing axis) 0.02 mm
Supply voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption 15 mA or less
