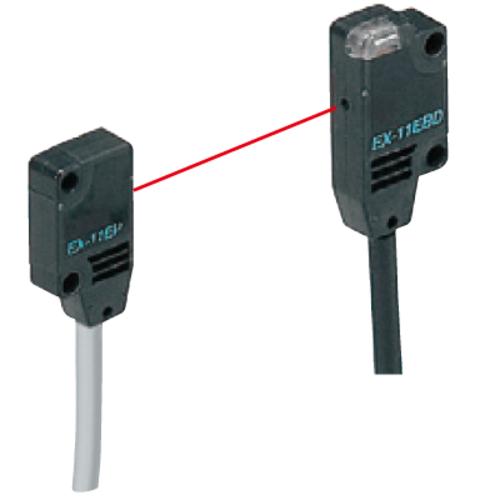

EX-13EB-PN Ultra-slim Photoelectric Sensor

1850 INR/Number

Get a Price/Quote

Product Details:

Application Thru-beam [Side sensing]
Sensor Type Ultra-slim Photoelectric Sensor
Usage & Applications Thru-beam [Side sensing]
IP Rating IP67 (IEC)
Features Ultra-slim Photoelectric Sensor EX-10 Ver.2
Cable Length 2 Meter (m)
Material Enclosure: Polyarylate Lens: Polyarylate
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

EX-13EB-PN Ultra-slim Photoelectric Sensor Price And Quantity

Price 1850 INR/Number
Minimum Order Quantity 1 Number

EX-13EB-PN Ultra-slim Photoelectric Sensor Product Specifications

Features Ultra-slim Photoelectric Sensor EX-10 Ver.2
Voltage 12 to 24 Volt (v)
IP Rating IP67 (IEC)
Cable Length 2 Meter (m)
Material Enclosure: Polyarylate Lens: Polyarylate
Output PNP open-collector transistor
Cable Type Yes
Warranty 1 Year
Measurement Range 500 mm
Product Type EX-13EB-PN
Application Thru-beam [Side sensing]
Sensor Type Ultra-slim Photoelectric Sensor
Usage & Applications Thru-beam [Side sensing]

EX-13EB-PN Ultra-slim Photoelectric Sensor Trade Information

Main Domestic Market All India

Product Description

Product Number	EX-13EB-PN
Part Number	EX-13EB-PN
Products Name	Ultra-slim Photoelectric Sensor
Product details	Thru-beam [Side sensing]
Output	PNP open-collector transistor
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL Recognition certification (Note) : Conformed from December 2021 production.
Sensing range	500 mm19.685 in
Min. sensing object	2 mm0.079 inopaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 500 mm19.685 in)
Protection	IP67 (IEC)
Repeatability(perpendicular to sensing axis)	0.05 mm0.002 inor less
Supply voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption	Emitter: 10 mA or less Receiver: 10 mA or less
