EX-11A-PN Ultra-slim Photoelectric Sensor

1850 INR/Number

Get a Price/Quote

Product Details:

Wireless No
Usage & Applications Thru-beam [Front sensing]
Sensor Type Ultra-slim Photoelectric Sensor
Cable Length 2 Meter (m)
Features Thru-beam [Front sensing]
Warranty 1 Year
Material Enclosure: Polyarylate Lens: Polyarylate
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

EX-11A-PN Ultra-slim Photoelectric Sensor Price And Quantity

Price 1850 INR/Number
Minimum Order Quantity 1 Number

EX-11A-PN Ultra-slim Photoelectric Sensor Product Specifications

Material Enclosure: Polyarylate Lens: Polyarylate
Warranty 1 Year
Output PNP open-collector transistor / NPN open collector transistor (selectable)
Voltage 12 to 24 Volt (v)
Features Thru-beam [Front sensing]
Cable Length 2 Meter (m)
Sensor Type Ultra-slim Photoelectric Sensor
Usage & Applications Thru-beam [Front sensing]
Function Ultra-slim Photoelectric Sensor
Wireless No
Weight 50 Grams (g)
Product Type EX-11A-PN
Cable Type Yes
IP Rating IP67 (IEC)
Application Ultra-slim Photoelectric Sensor EX-10 Ver.2
Measurement Range 150mm

EX-11A-PN Ultra-slim Photoelectric Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Product Number	EX-11A-PN
Part Number	EX-11A-PN
Products Name	Ultra-slim Photoelectric Sensor
Product details	Thru-beam [Front sensing]
Output		PNP open-collector transistor
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Sensing range	150 mm
Min. sensing object	1 mm opaque object
Hysteresis	-
Repeatability(perpendicular to sensing axis)	0.05 mm0.002 inor less
Supply voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption	Emitter: 10 mA or less Receiver: 10 mA or less

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Photoelectric Sensor' category

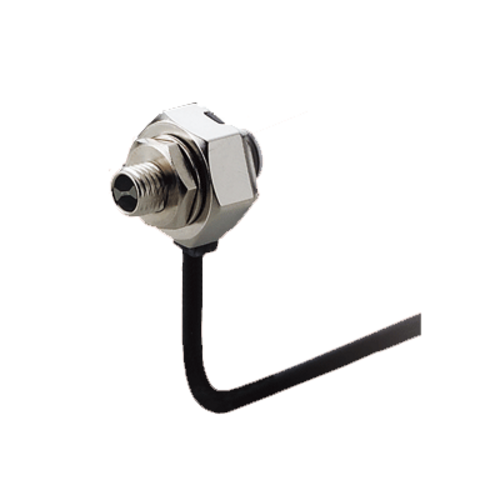

EX-32B Threaded Miniature Photoelectric Sensor Price : 5250 INR/Number Minimum Order Quantity : 1 Material : Enclosure: Diecast zinc (Nickel plated) Lens: Acrylic Enclosure cover: Polycarbonate Sensor Type : Diffuse reflective Output : NPN opencollector transistor IP Rating : IP67 (IEC) Measurement Range : 50 mm Product Type : EX32B Function : Diffuse reflective Warranty : 1 Year Application : Threaded Miniature Photoelectric Sensor Weight : 30 Grams (g) Usage & Applications : Threaded Miniature Photoelectric Sensor EX30 Ver.2 Cable Type : Yes
