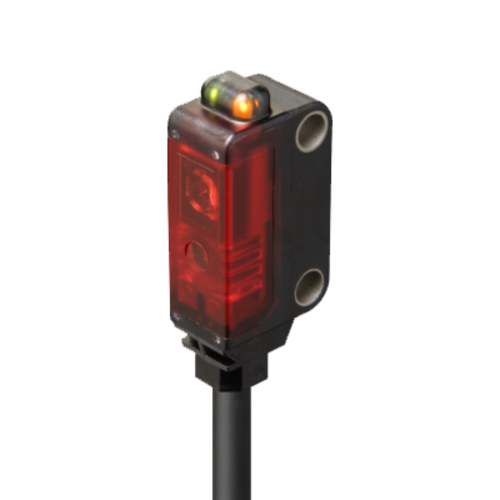

EX-L221-P Compact Laser Sensor
5620 INR/Number
Product Details:
- Features Amplifier Built-in Ultra-compact Laser Sensor
- Material Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate
- Measurement Range 45 to 300 mm
- Cable Type Yes
- Warranty 1 Year
- Usage & Applications Amplifier Built-in Ultra-compact Laser Sensor EX-L200
- IP Rating IP67 (IEC)
- Click to View more
X
EX-L221-P Compact Laser Sensor Price And Quantity
- 5620 INR/Number
- 1 Number
EX-L221-P Compact Laser Sensor Product Specifications
- Spot reflective type
- Amplifier Built-in Ultra-compact Laser Sensor EX-L200
- EX-L221-P
- Amplifier Built-in Ultra-compact Laser Sensor EX-L200
- 60 Grams (g)
- IP67 (IEC)
- Incorporated (Two sensors can be mounted close together.)
- 2 Meter (m)
- 12 to 24 Volt (v)
- 45 to 300 mm
- PNP open-collector transistor
- Yes
- 1 Year
- Amplifier Built-in Ultra-compact Laser Sensor
- Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate
EX-L221-P Compact Laser Sensor Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Product Number | EX-L221-P |
|---|---|
| Part Number | EX-L221-P |
| Products Name | Amplifier Built-in Ultra-compact Laser Sensor |
| Product details | Spot reflective type |
| Output | PNP open-collector transistor |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, Chinese Standard GB 7247.1 |
| Sensing range | 45 to 300 mm1.772 to 11.811 in |
| Emission spot size (Typical) | 1 mm |
| Sensing object | Opaque, translucent or transparent object |
| Minimum sensing object (Typical) | Gold wire of 0.01 mm |
| Hysteresis | 20 % or less of operation distance |
| Repeatability | Perpendicular to sensing axis: 0.05 mm0.0020 inor less |
| Repeatability (Typical)(perpendicular to sensing axis) | 0.02 mm0.0008 inor less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
