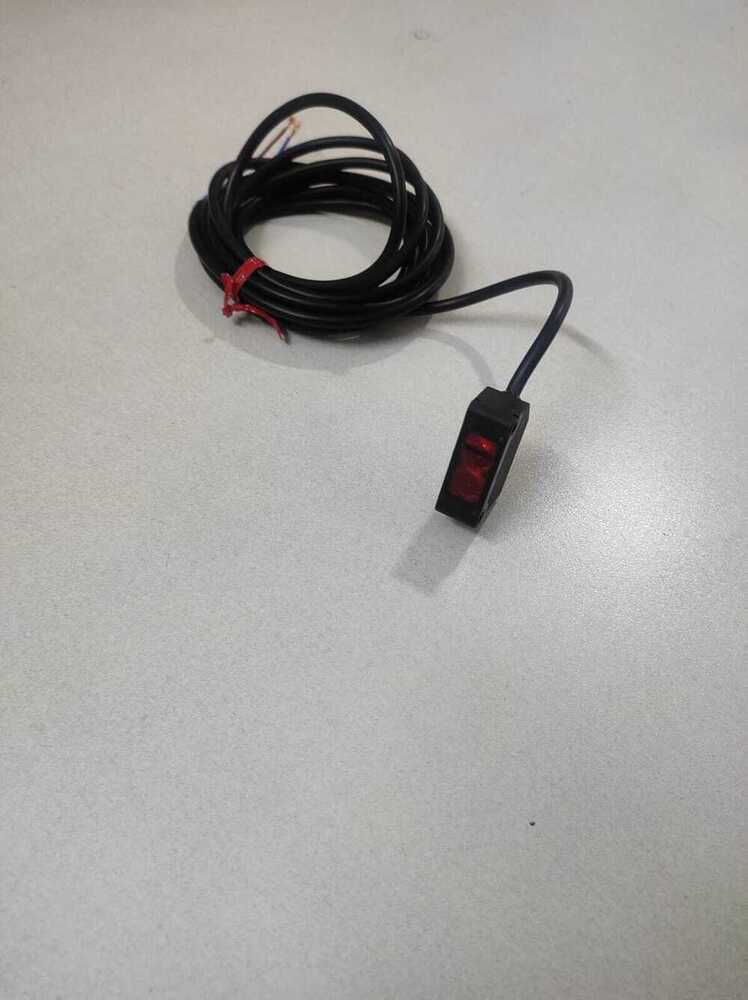

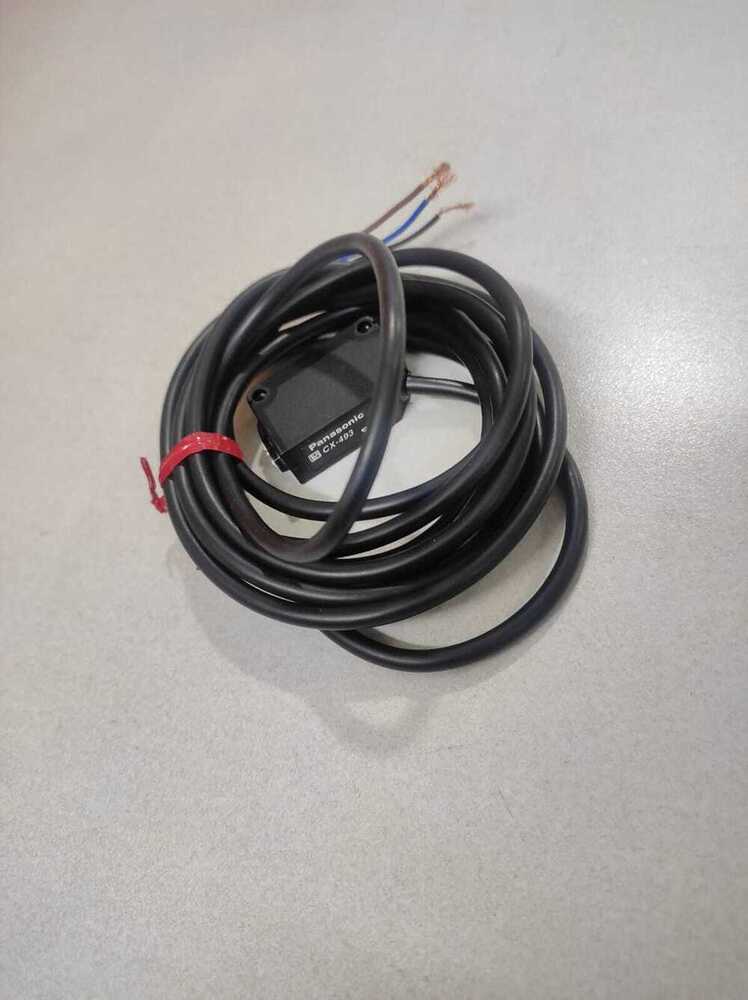

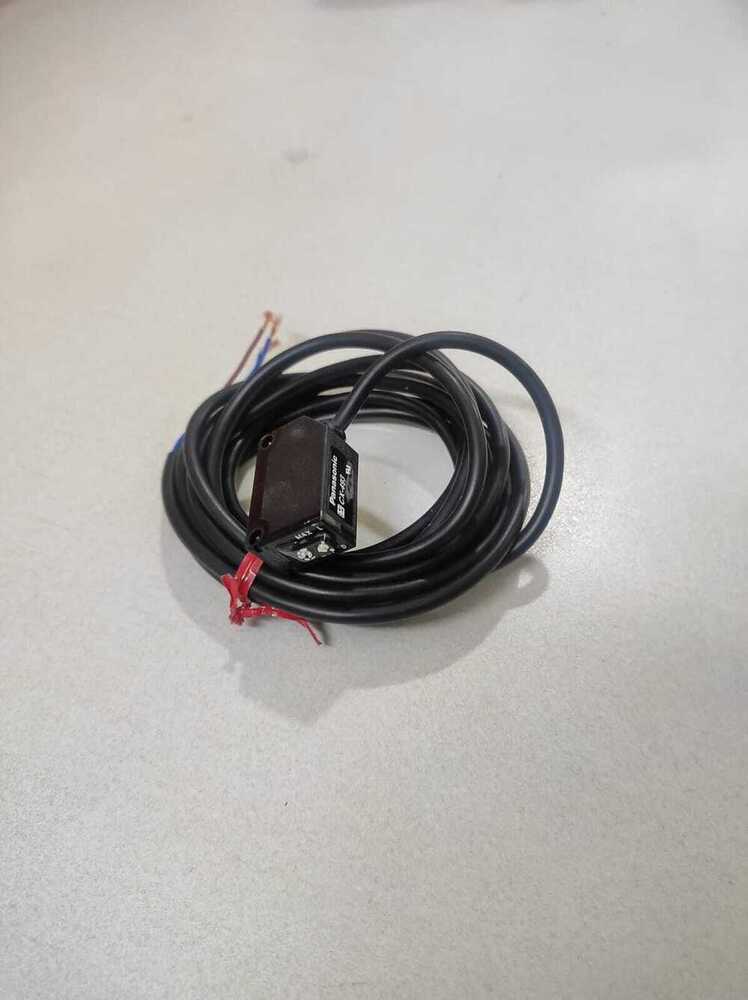

CX-493 Sensor
1260 INR/Number
Product Details:
- IP Rating IP67 (IEC)
- Sensor Type Retroreflective(Long sensing range)
- Cable Length 2 Meter (m)
- Measurement Range 5 m
- Features Incorporated(Two units of sensors can be mounted close together.)
- Application Compact Photoelectric Sensor
- Sensitivity Continuously variable adjuster(incorporated on the receiver for thru-beam type)
- Click to View more
X
CX-493 Sensor Price And Quantity
- 1260 INR/Number
- 1 Number
CX-493 Sensor Product Specifications
- Continuously variable adjuster(incorporated on the receiver for thru-beam type)
- Incorporated(Two units of sensors can be mounted close together.)
- Compact Photoelectric Sensor
- Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic
- 5 m
- 2 Meter (m)
- NPN open-collector transistor
- 80
- CX-493
- Retroreflective(Long sensing range)
- IP67 (IEC)
- CX-493
CX-493 Sensor Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Product Number | CX-493 |
|---|---|
| Part Number | CX-493 |
| Products Name | Compact Photoelectric Sensor |
| Product details | Retroreflective(Long sensing range) |
| The price of the product | Please contact our office |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL Recognition Certification |
| Sensing range | 5 m16.404 ft |
| Sensing object | 50 mm1.969 in |
| Hysteresis | - |
| Repeatability(perpendicular to sensing axis) | 0.5 mm0.020 inor less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 10 mA or less |
| Output | NPN open-collector transistor |
| Output: Output operation | Switchable either Light-ON or Dark-ON |
| Output: Short-circuit protection | Incorporated |
| Response time | 1 ms or less |
| Operation indicator | Orange LED(lights up when the output is ON) |
