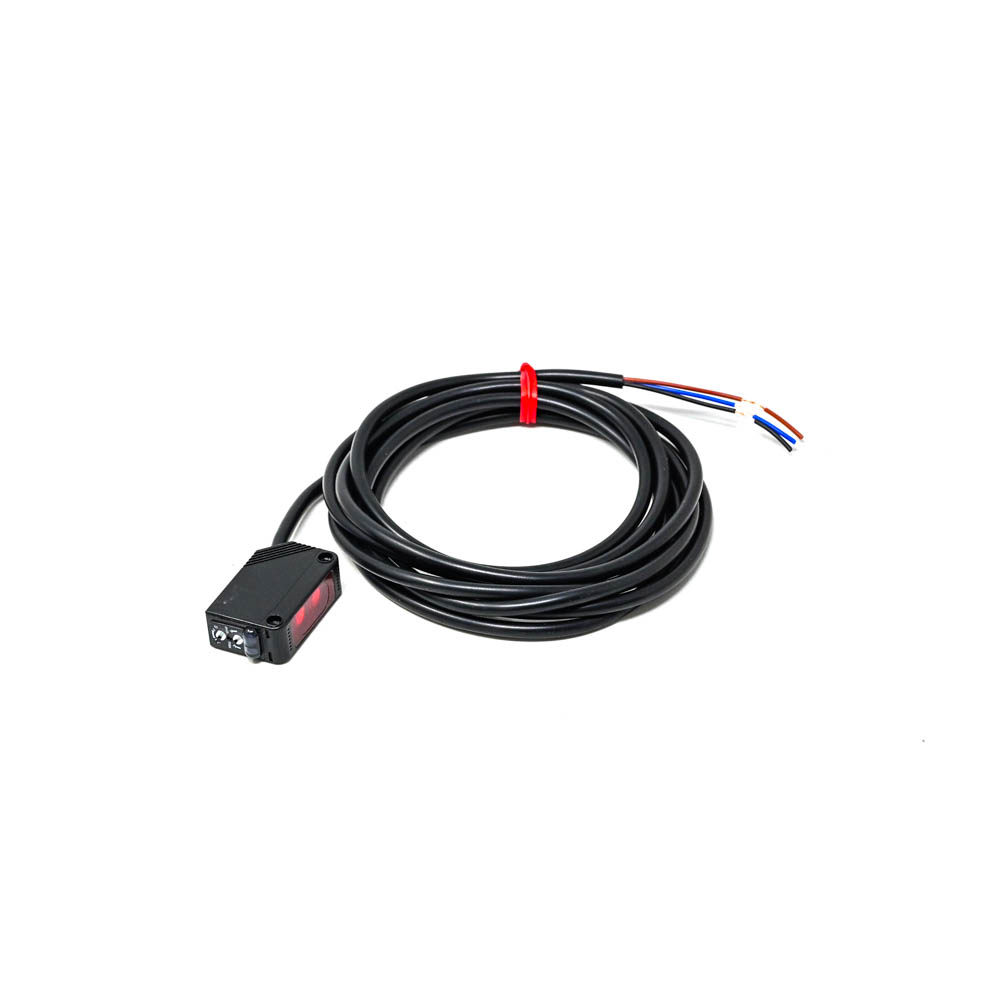

CX-423 Sensor

1400.0 INR/Number

Get a Price/Quote

Product Details:

IP Rating IP67 (IEC)
Application Diffuse reflective(Narrow-view)
Measurement Range 70 to 300 mm
Sensor Type Compact Photoelectric Sensor
Cable Length 2 Meter (m)
Product Type CX-423
Material Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CX-423 Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 1400.0 INR/Number

CX-423 Sensor Product Specifications

Weight 60 Grams (g)
Sensor Type Compact Photoelectric Sensor
Cable Length 2 Meter (m)
Measurement Range 70 to 300 mm
Product Type CX-423
Output NPN open-collector transistor
Material Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic
IP Rating IP67 (IEC)
Application Diffuse reflective(Narrow-view)

CX-423 Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Product Number	CX-423
Part Number	CX-423
Products Name	Compact Photoelectric Sensor
Product details	Diffuse reflective(Narrow-view)
Response Time	1 ms or less
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL Recognition Certification
Sensing range	70 to 300 mm 2.756 to 11.811 in
Sensing object	Opaque, translucent or transparent object.
Hysteresis	15 % or less of operation distance
Repeatability(perpendicular to sensing axis)	0.5 mm 0.020 in or less
Supply voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current consumption	15 mA or less
Output	NPN open-collector transistor
Output:Output operation	Switchable either Light-ON or Dark-ON
Output:Short-circuit protection	Incorporated
