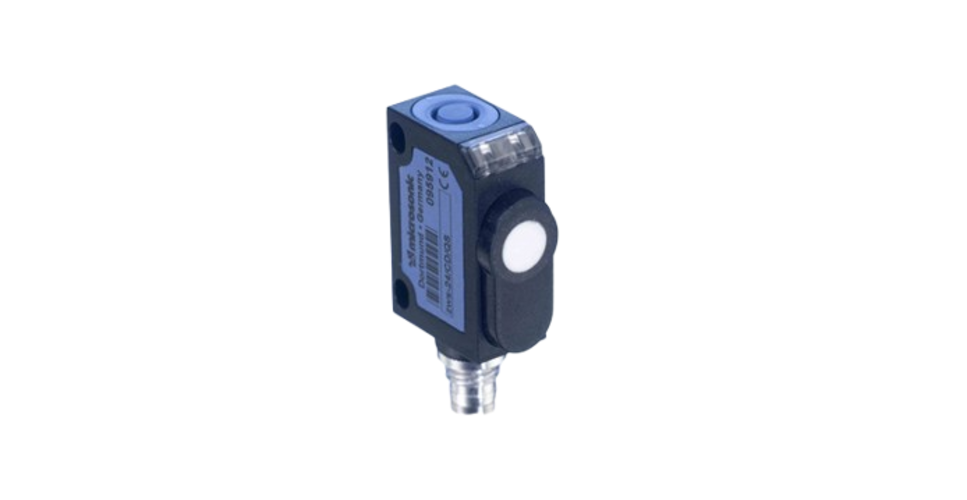

zws-24/CI/QS Sensor

19000.0 INR/Number

Get a Price/Quote

Product Details:

IP Rating IP 67
Features Teach-in via push-button
Sensor Type zws ultrasonic sensors
Measurement Range 55 - 350 mm
Product Type zws-24/CI/QS
Material ABS
Input Synchronization input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

zws-24/CI/QS Sensor Price And Quantity

Price 19000.0 INR/Number
Minimum Order Quantity 1 Number

zws-24/CI/QS Sensor Product Specifications

Features Teach-in via push-button
Warranty 1 year
Output analogue output
Measurement Range 55 - 350 mm
IP Rating IP 67
Input Synchronization input
Product Type zws-24/CI/QS
Resolution 0.20 mm
Material ABS
Sensor Type zws ultrasonic sensors
Weight 10 Grams (g)

zws-24/CI/QS Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

zws-24/CI/QS

1 x analogue 4-20 mA

Measuring Range : 55-350 mm

Design : Cuboidal

Operating Mode : Analogue Distance Measurement

Measurement Method : Echo Propagation Time Measurement

Ultrasonic Frequency : 500 kHz

Blind Zone : 55 mm

Operating Range : 240 mm

Maximum Range : 350 mm

Operating Voltage : 20 V to 30 V dc, Reverse Polarity Protection

Type of Connection : 4-pin M8 Circular Connector

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

crm+600/DD/TC/E Sensor Price : 32000.0 INR/Number Minimum Order Quantity : 1 Product Type : crm+600/DD/TC/E Input : com input synchronisation input Sensor Type : crm + ultrasonic sensor Weight : 270 Grams (g) Measurement Range : 600 8000 mm Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof IP Rating : IP 67 Warranty : 1 year Resolution : 0.18 mm Material : stainless steel, plastic parts: PBT, TPU Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Accuracy : 1 %

Send Inquiry

mic+130/DIU/TC Sensor Price : 35310.0 INR/Number Minimum Order Quantity : 1 Product Type : mic+130/DIU/TC Input : com input synchronisation input Sensor Type : mic + ultrasonic sensor Weight : 150 Grams (g) Measurement Range : 200 2000 mm Output : analogue output, pnp: Imax = 200 mA (UB2V) IP Rating : IP 67 Warranty : 1 year Resolution : 0.18 mm to 0.57 mm, depending on the analogue window Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Accuracy : 1 %

Send Inquiry

pms-35/CI/A1 Sensor Price : 34920.0 INR/Number Minimum Order Quantity : 1 Product Type : pms35/CI/A1 Input : com input synchronisation input teachin input Sensor Type : pms ultrasonic sensors Weight : 140 Grams (g) Measurement Range : 70 600 mm Output : analogue output IP Rating : IP 66, IP 67, IP 68 Warranty : 1 year Resolution : 0.069 mm to 0.17 mm, depending on the analogue window Material : stainless steel Features : Teachin via com input on pin 2 LCA2 with LinkControl

Send Inquiry

zws-70/CE/QS Sensors Price : 17000.0 INR/Number Minimum Order Quantity : 1 Product Type : zws70/CE/QS Input : Synchronization input Sensor Type : zws ultrasonic sensors Weight : 11 Grams (g) Measurement Range : 120 1000 mm Output : NPN IP Rating : IP 67 Warranty : 1 year Resolution : 0.20 mm Material : ABS Features : Teachin via pushbutton

Send Inquiry
