crm+600/DD/TC/E Sensor

32000.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range 600 - 8000 mm
Features Teach-in and numeric configuration via TouchControl LCA-2 with LinkControl
IP Rating IP 67
Sensor Type crm + ultrasonic sensor
Product Type crm+600/DD/TC/E
Material stainless steel, plastic parts: PBT, TPU
Input com input synchronisation input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

crm+600/DD/TC/E Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 32000.0 INR/Number

crm+600/DD/TC/E Sensor Product Specifications

Measurement Range 600 - 8000 mm
Features Teach-in and numeric configuration via TouchControl LCA-2 with LinkControl
Product Type crm+600/DD/TC/E
Resolution 0.18 mm
Accuracy 1 %
Input com input synchronisation input
Material stainless steel, plastic parts: PBT, TPU
Warranty 1 year
IP Rating IP 67
Weight 270 Grams (g)
Sensor Type crm + ultrasonic sensor
Output switching output pnp: Imax = 200 mA (UB-2V) NOC/NCC adjustable, short-circuit-proof

crm+600/DD/TC/E Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

crm+600/DD/TC/E

Measuring Range : 600-8,000 mm

Design : Cylindrical M30

Operating Mode : Proximity Switch/Reflective Mode

Particularities : High Chemical Resistance

Stainless Steel Version

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 80 kHz

Blind Zone : 600 mm

Operating Range : 6,000 mm

Maximum Range : 8,000 mm

Resolution : 0.18 mm

Operating Voltage : 9-30 V dc, reverse polarity protection

Type of Connection : 5 pin M12 initiator plug

Ultrasonic Transducer : Coated with PEEK film, PTFE O-ring

Indicators : 3-digit LED display, 2 x three-color LED

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

pico+15/TF/F Sensor Price : 24800.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Material : PVDF, PBT Input : com input synchronisation input teachin input Output : PushPull IP Rating : IP 67 Weight : 30 Grams (g) Sensor Type : pico+TF ultrasonic fillinglevel sensor Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Product Type : pico+15/TF/F Measurement Range : 120 1300 mm

Send Inquiry

dbk+4/Empf/WK/3BEE/M18 Sensor Price : 32490.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Input : control input Output : double sheet output pnp; missing sheet output pnp IP Rating : IP 65 Weight : 100 Grams (g) Sensor Type : dbk+4 ultrasonic doublesheet control Features : Washi, metallaminated sheets and films up to 0.4 mm thick, selfadhesive films, sheet metals up to 0.3 mm thick, fine corrugated card, wafers, PCBs Product Type : dbk+4/Empf/WK/3BEE/M18 Measurement Range : papers with weights of 20 2,000 g/m2

Send Inquiry

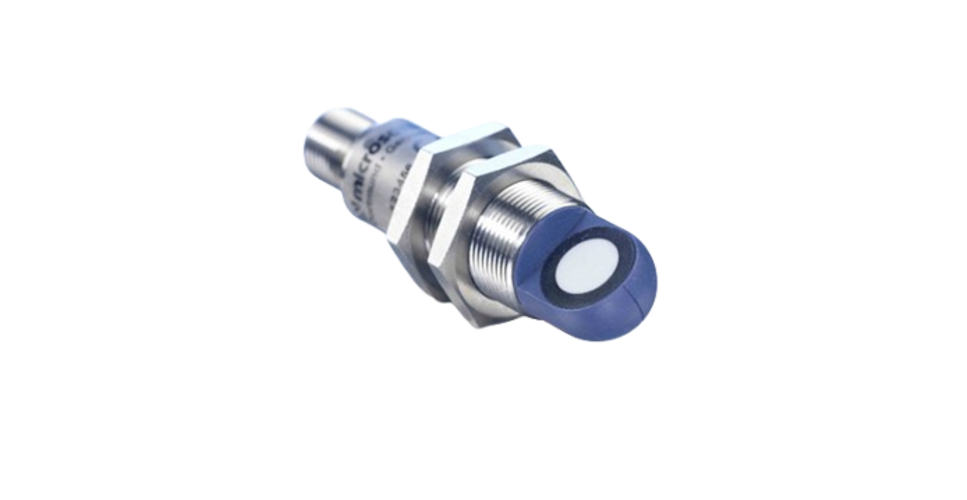

pico+35/WK/F/A Sensor Price : 15960.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Material : brass sleeve, nickelplated, plastic parts, PBT Input : com input synchronisation input teachin input Output : PushPull IP Rating : IP 67 Weight : 35 Grams (g) Sensor Type : pico+ ultrasonic sensors Features : IOLink LCA2 with LinkControl Teachin via com input on pin 5 Product Type : pico+35/WK/F/A Measurement Range : 65 600 mm

Send Inquiry

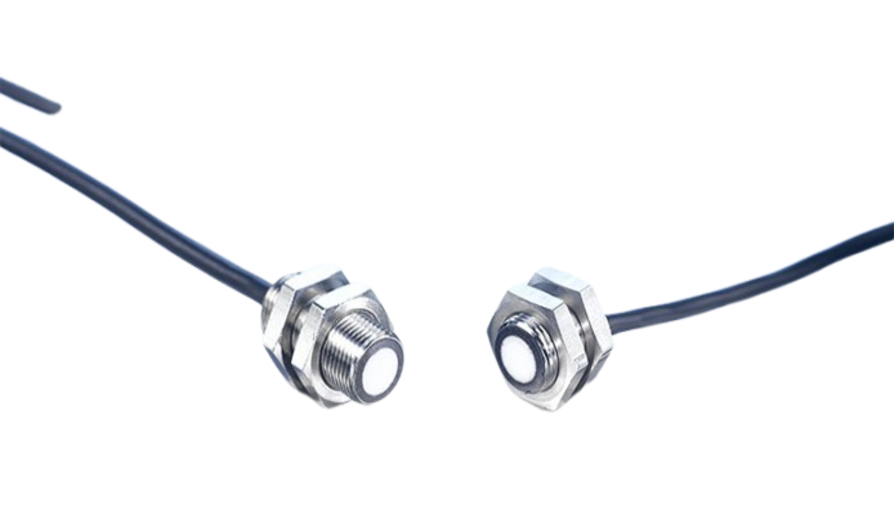

dbk+4/M18/3CDD/M18 E+S Price : 41640.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Input : control input Output : double sheet output pnp; missing sheet output pnp IP Rating : IP 65 Weight : 165 Grams (g) Sensor Type : dbk+4 ultrasonic doublesheet control Features : working range selection via control inputs Teachin via control inputs LCA2 with LinkControl Product Type : dbk+4/M18/3CDD/M18 E+S Measurement Range : 20 2,000 g/m2
