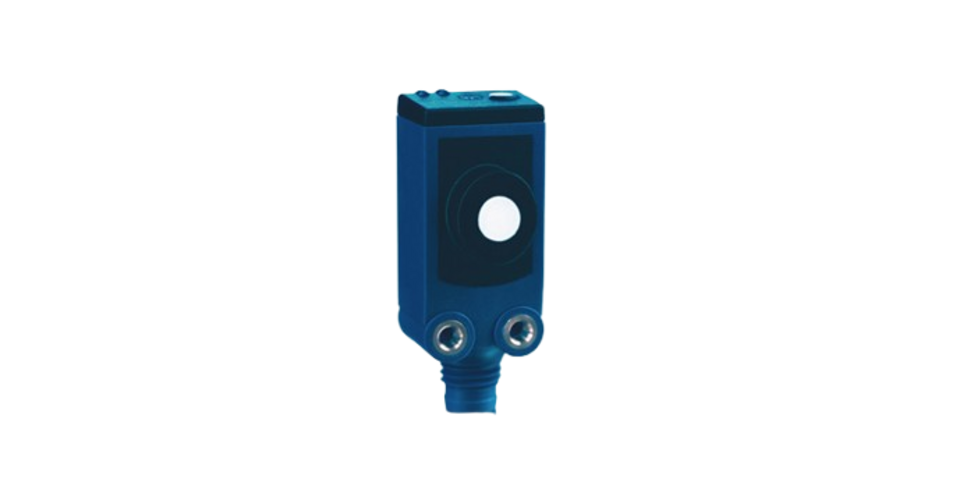

sks-15/CF/A Sensor

16440.0 INR/Number

Get a Price/Quote

Product Details:

Sensor Type sks ultrasonic sensors
Measurement Range 20 - 250 mm
Features Teach-in via push-button IO-Link
IP Rating IP 67
Product Type sks-15/CF/A
Material ABS
Input control input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

sks-15/CF/A Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 16440.0 INR/Number

sks-15/CF/A Sensor Product Specifications

Measurement Range 20 - 250 mm
Material ABS
Resolution 0.10 mm
Sensor Type sks ultrasonic sensors
IP Rating IP 67
Output Push-Pull
Product Type sks-15/CF/A
Warranty 1 year
Input control input
Weight 8 Grams (g)
Features Teach-in via push-button IO-Link

sks-15/CF/A Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

sks-15/CF/A

1 x Push-Pull

Measuring Range : 20-250 mm

Design : Cuboidal

Operating Mode : IO-Link

Proximity Switch/Reflective Mode

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 380 kHz

Blind Zone : 20 mm

Operating Range : 150 mm

Maximum Range : 250 mm

Operating Voltage : 10-30 V dc, Reverse Polarity Protection

Type of Connection : 4-pin M8 initiator plug

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number
