cube-130/F Sensor

16050.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range 200 - 2000 mm
Sensor Type Cube Ultrasonic Sensors
Features Teach-in via push-button Teach-in via com input on pin 5 LCA-2 with LinkControl IO-Link
IP Rating IP 67
Product Type cube-130/F
Material PA
Input com input synchronisation input teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

cube-130/F Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 16050.0 INR/Number

cube-130/F Sensor Product Specifications

Sensor Type Cube Ultrasonic Sensors
Measurement Range 200 - 2000 mm
Input com input synchronisation input teach-in input
Features Teach-in via push-button Teach-in via com input on pin 5 LCA-2 with LinkControl IO-Link
Warranty 1 year
Product Type cube-130/F
IP Rating IP 67
Resolution 0.224 mm
Material PA
Weight 120 Grams (g)
Output Push-Pull

cube-130/F Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

cube-130/F

1 x Push/Pull

Measuring Range : 200-2,000 m

Design : Cuboidal

Operating Mode : IO-Link

Proximity Switch/Reflective Mode

Particularities : Small Cuboidal Design

IO-Link Version 1.1

QuickLock Mounting Bracket

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 200 kHz

Blind Zone : 200 mm

Operating Range : 1,300 mm

Maximum Range : 2,000 mm

Resolution : 0.224 mm

COM Mode : COM2 (38,4 kBaud)

Controls : 2 Push-Buttons

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

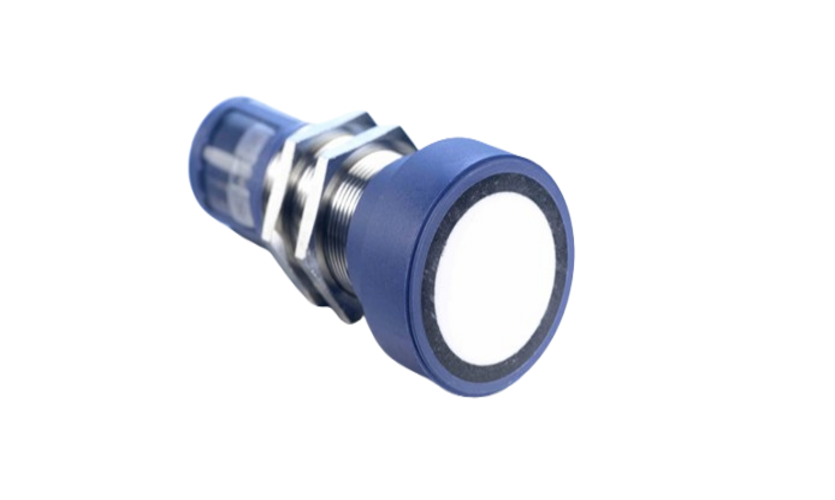

mic+340/D/TC/E Sensor Price : 19260.0 INR/Number Minimum Order Quantity : 1 Input : com input synchronisation input Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Warranty : 1 Year Product Type : mic+340/D/TC/E Measurement Range : 3505000 mm Material : stainless steel, plastic parts: PBT, TPU Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof IP Rating : IP 67 Weight : 210 Grams (g) Resolution : 0.18 mm

Send Inquiry

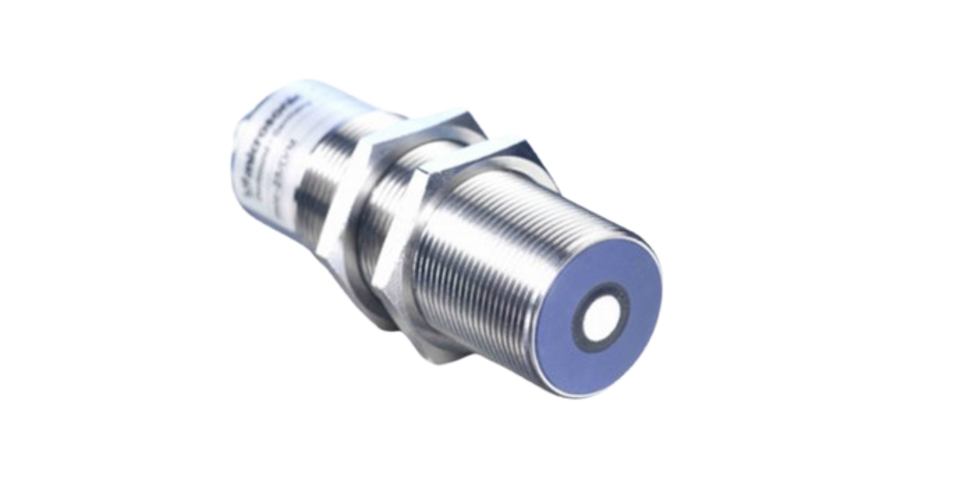

mic-25/D/M Sensor Price : 15470.0 INR/Number Minimum Order Quantity : 1 Input : control input Teachin input Features : Teachin via com input on pin 5 LCA2 with LinkControl Warranty : 1 year Product Type : mic25/D/M Measurement Range : 30 350 mm Material : brass sleeve, nickelplated, plastic parts, PBT Output : PNP IP Rating : IP 67 Sensor Type : mic ultrasonic sensors Weight : 200 Grams (g) Resolution : 0.18 mm

Send Inquiry

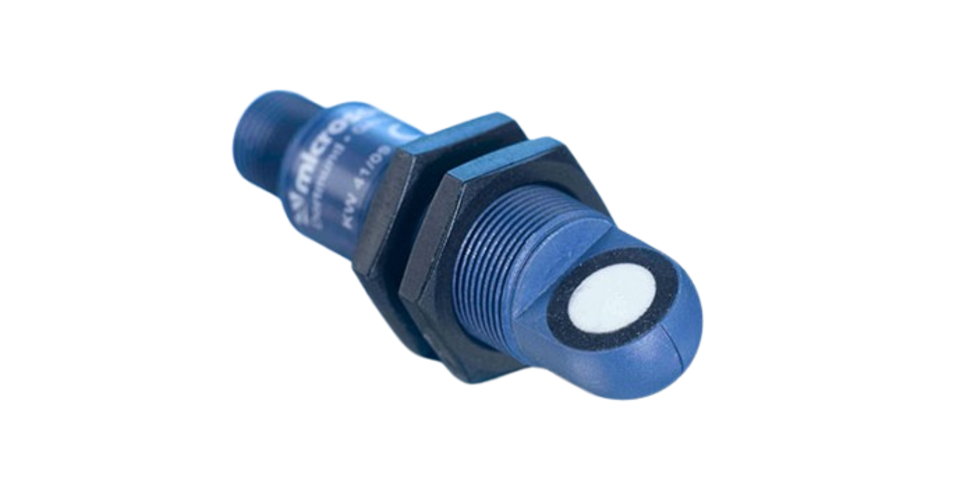

nero-35/WK/CI Sensor Price : 14500.0 INR/Number Minimum Order Quantity : 1 Input : Teachin input Features : Teachin Warranty : 1 year Product Type : nero35/WK/CI Measurement Range : 65 600 mm Material : PBT Output : analogue output IP Rating : IP 67 Sensor Type : nero ultrasonic sensors Weight : 20 Grams (g) Resolution : 0.056 mm to 0.691 mm, depending on the analogue window

Send Inquiry

dbk+4/Empf/WK/3BEE/M18 Sensor Price : 32490.0 INR/Number Minimum Order Quantity : 1 Input : control input Features : Washi, metallaminated sheets and films up to 0.4 mm thick, selfadhesive films, sheet metals up to 0.3 mm thick, fine corrugated card, wafers, PCBs Warranty : 1 year Product Type : dbk+4/Empf/WK/3BEE/M18 Measurement Range : papers with weights of 20 2,000 g/m2 Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Output : double sheet output pnp; missing sheet output pnp IP Rating : IP 65 Sensor Type : dbk+4 ultrasonic doublesheet control Weight : 100 Grams (g)

Send Inquiry
