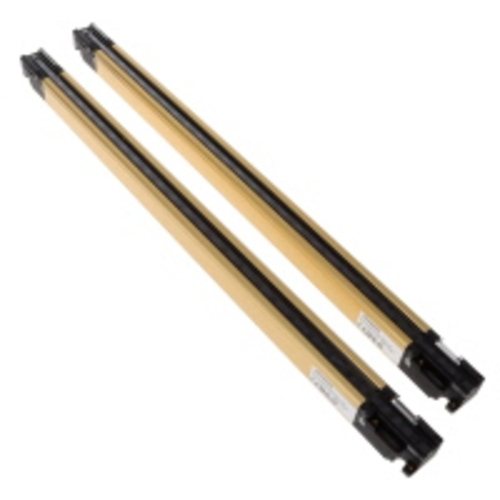

SF4D-H40 Light Curtain
30970.0 INR/Number
Product Details:
- IP Rating IP67, IP65 (IEC), NEMA Type 13 (NEMA 250)
- Sensor Type Safety Light Curtain
- Product Type SF4D-H40
- Material Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon
- Input Incorporated
- Output PNP open-collector transistor / NPN open collector transistor (selectable)
- Resolution 20 mm
- Click to View more
X
SF4D-H40 Light Curtain Price And Quantity
- 1 Number
- 30970.0 INR/Number
SF4D-H40 Light Curtain Product Specifications
- PNP open-collector transistor / NPN open collector transistor (selectable)
- Safety Light Curtain
- Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon
- 1900 Grams (g)
- SF4D-H40
- IP67, IP65 (IEC), NEMA Type 13 (NEMA 250)
- 1 year
- Incorporated
- 20 mm
SF4D-H40 Light Curtain Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Product Number | SF4D-H40 |
|---|---|
| Part Number | SF4D-H40 |
| Products Name | Safety Light Curtain [Type 4 PLe SIL3] |
| Product details | Min. sensing object 25 mm 0.984 in (20 mm 0.787 in beam pitch) |
| No. of beam channels | 40 |
| Protective height | 790 mm 31.102 in |
| Protective height : When using as safety equipment for Chinese press machine | 780 mm 30.709 in |
| Current consumption | Emitter : 120 mA or less Receiver : 140 mA or less |
