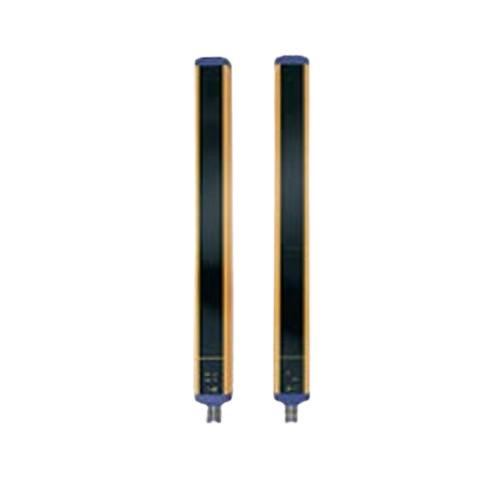

SG2-30-120-OO-X Sensor

32760.0 INR/Number

Get a Price/Quote

Product Details:

Power Consumption 5 Watt (W)
Sensitivity n/a
Mounting Type Standard "L" Mounting Brackets: 6 pcs kit
Measurement Range 0,2 19 m
IP Rating IP65
Sensor Type Safety Light Curtain
Application Emitter + Receiver
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SG2-30-120-OO-X Sensor Price And Quantity

Price 32760.0 INR/Number
Minimum Order Quantity 1 Number

SG2-30-120-OO-X Sensor Product Specifications

Application Emitter + Receiver
Resolution 30mm
Function Hand protection res. 30 mm
Output 2 x PNP-NO (OSSD safety output)
Material Painted aluminum / PMMA / PC MAKROLON
Power Consumption 5 Watt (W)
Product Type SG2-30-120-OO-X
Sensitivity n/a
Mounting Type Standard "L" Mounting Brackets: 6 pcs kit
Usage Safety Purpose
Measurement Range 0,2 19 m
IP Rating IP65
Sensor Type Safety Light Curtain

SG2-30-120-OO-X Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Nominal Sensing Distance - 0,2...19m

Resolution - 30mm

Controlled Height - 1200mm

No. of Rays - 64

Function Principle - Emitter + Receiver

Available Functions - Automatic Restart

Description - Compact Standard

Functions - Hand Protection 30mm

Type - Type 2 Safety Light Curtain (A)

SIL - 1

PL-c

Output Type - 2*PNP-NO

Response Time - 18.1 ms

Operating Voltage - 24 VDC 20%

Storage Temperature - -25...+70C

Mechanical Protection - IP65

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Light Curtains' category

SG2-30-090-OO-X Light Curtain Price : 24000.0 INR/Number Minimum Order Quantity : 1 IP Rating : 65 Sensor Type : Safety Light Curtain Product Type : Type 2 Resolution : 30mm Material : Painted aluminum / PMMA / PC MAKROLON Output : 2 x PNPNO (OSSD safety output) Sensitivity : n/a Usage : Safety Purpose Function : Hand protection res. 30 mm Application : Emitter+Receiver Measurement Range : 19m Power Consumption : 3 Watt (W) Accuracy : 19 mm Operating Temperature : 15 Celsius (oC) Voltage : 24 Volt (v)

Send Inquiry

SG2-30-075-OO-X Light Curtain Price : 21000.0 INR/Number Minimum Order Quantity : 1 IP Rating : 65 Sensor Type : Safety Light Curtain Product Type : Type 2 Resolution : 30mm Material : Painted aluminum / PMMA / PC MAKROLON Output : 2 x PNPNO (OSSD safety output) Sensitivity : n/a Usage : Safety Purpose Function : Hand protection res. 30 mm Application : Emitter+Receiver Measurement Range : 19m Power Consumption : 3 Watt (W) Accuracy : 19 mm Operating Temperature : 15 Celsius (oC) Voltage : 24 Volt (v)

Send Inquiry

SG2-30-150-OO-X Sensors Price : 39150.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP65 Sensor Type : Safety Light Curtain Product Type : SG230150OOX Resolution : 30mm Material : Painted aluminum / PMMA / PC MAKROLON Output : 2 x PNPNO (OSSD safety output) Sensitivity : n/a Usage : Safety Purpose Function : Hand protection res. 30 mm Application : Emitter + Receiver

Send Inquiry

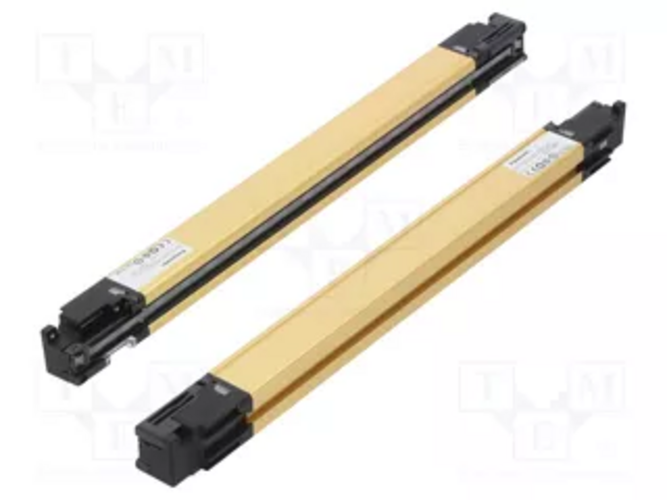

SF4D-H12 Light Curtain Price : 18920.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP67, IP65 (IEC), NEMA Type 13 (NEMA 250) Sensor Type : Safety Light Curtain Product Type : SF4DH12 Resolution : 20 mm Material : Enclosure : Aluminum, Detection surface : Polycarbonate resin and stainless steel (SUS304), Upper cap / lower cap : Nylon Output : PNP opencollector transistor / NPN open collector transistor (selectable) Warranty : 1 year Input : Incorporated Weight : 470 Grams (g)
