pico+100/F/A Sensor

15960.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range 120 - 1300 mm
Features IO-Link LCA-2 with LinkControl Teach-in via com input on pin 5
IP Rating IP 67
Sensor Type pico+ ultrasonic sensors
Product Type pico+100/F/A
Material brass sleeve, nickel-plated, plastic parts, PBT
Input com input synchronisation input teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

pico+100/F/A Sensor Price And Quantity

Price 15960.0 INR/Number
Minimum Order Quantity 1 Number

pico+100/F/A Sensor Product Specifications

Product Type pico+100/F/A
Resolution 0.10 mm
Weight 30 Grams (g)
Warranty 1 year
Output Push-Pull
Sensor Type pico+ ultrasonic sensors
Input com input synchronisation input teach-in input
Material brass sleeve, nickel-plated, plastic parts, PBT
IP Rating IP 67
Measurement Range 120 - 1300 mm
Features IO-Link LCA-2 with LinkControl Teach-in via com input on pin 5

pico+100/F/A Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

piko+100/F/A

1 x Push-Pull

Measuring Range : 120-1300 mm

Design : Cylindrical M18

Operating Mode : IO-Link

Proximity Switch/ Reflective Mode

Particularities : IO-Link Version 1.1

UL Listed

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 200 kHz

Blind Zone : 120 mm

Operating Range : 1000 mm

Maximum Range : 1300 mm

Operating Voltage : 10-30 V DC, Reverse Polarity Protection

Type of Connection : 5 pin M12 initiator plug

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

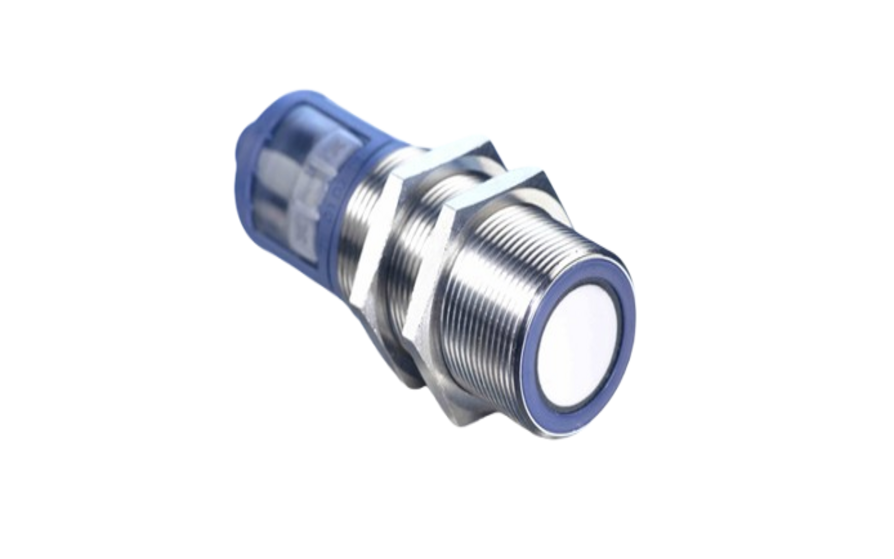

mic+130/DIU/TC/E Sensor Price : 37260.0 INR/Number Minimum Order Quantity : 1 Output : analogue output, pnp: Imax = 200 mA (UB2V) Warranty : 1 year Product Type : mic+130/DIU/TC/E Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Measurement Range : 200 2000 mm IP Rating : IP 67 Material : stainless steel, plastic parts: PBT, TPU Input : com input synchronisation input Sensor Type : mic + ultrasonic sensor Weight : 150 Grams (g) Resolution : 0.18 mm to 0.57 mm, depending on the analogue window

Send Inquiry

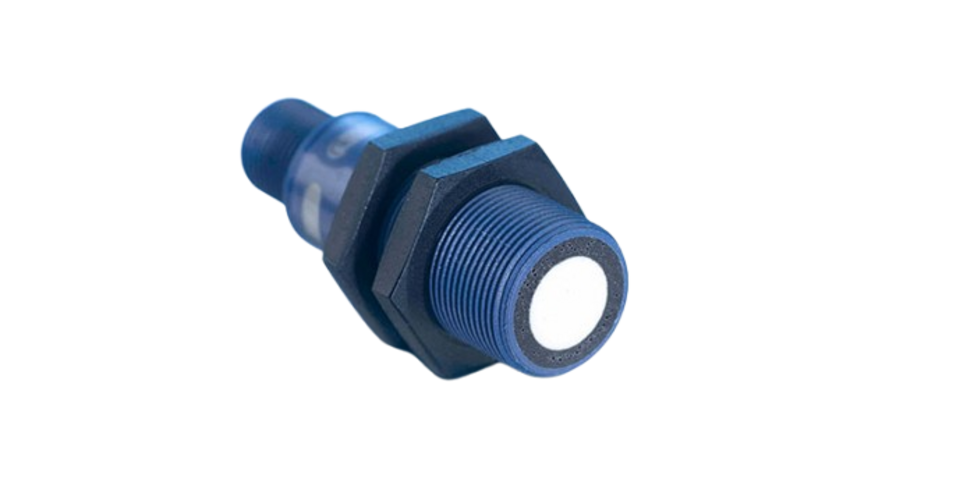

nero-100/CU Sensor Price : 14500.0 INR/Number Minimum Order Quantity : 1 Output : analogue output Warranty : 1 year Product Type : nero100/CU Features : Teachin Measurement Range : 120 1300 mm IP Rating : IP 67 Material : PBT Input : Teachin input Sensor Type : nero ultrasonic sensors Weight : 15 Grams (g) Resolution : 0.056 mm to 1.525 mm, depending on the analogue window
