ews-15/M18/CD Set

28990.0 INR/Number

Get a Price/Quote

Product Details:

Features Teach-in
Measurement Range 10 - 150 mm
Sensor Type ews ultrasonic through-beam barrier
IP Rating IP 67
Product Type ews-15/M18/CD Set
Material ABS
Input control input Teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ews-15/M18/CD Set Price And Quantity

Minimum Order Quantity 1 Number
Price 28990.0 INR/Number

ews-15/M18/CD Set Product Specifications

Weight 2x15 Grams (g)
Material ABS
Measurement Range 10 - 150 mm
IP Rating IP 67
Output switching output pnp: Imax = 200 mA (UB-2V) NOC/NCC adjustable, short-circuit-proof
Input control input Teach-in input
Product Type ews-15/M18/CD Set
Warranty 1 year
Features Teach-in
Sensor Type ews ultrasonic through-beam barrier

ews-15/M18/CD Set Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

ews-15/M18/CD Set

1 x pnp

Measuring Range : 10 - 150 mm

Design : Cylindrical M18

Operating Mode : One-Way Barrier

Means of Measurement : Transmitter-receiver pulse mode

Transducer Frequency : 380 kHz

Type of Connection : 4-pin M12 Initiator Plug

Switching Frequency : 500 Hz, with activated filter 125 Hz

Response Time : 2 ms, with activated filter 6 ms

Max. Tightening Torque of Nuts : 1 Nm

Controls : Control Input

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

pico+15/TF/F Sensor Price : 24800.0 INR/Number Minimum Order Quantity : 1 Weight : 30 Grams (g) Sensor Type : pico+TF ultrasonic fillinglevel sensor Warranty : 1 year Output : PushPull Measurement Range : 120 1300 mm Material : PVDF, PBT Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Product Type : pico+15/TF/F IP Rating : IP 67 Input : com input synchronisation input teachin input Resolution : 0.069 mm

Send Inquiry

mic-130/IU/M Sensor Price : 28500.0 INR/Number Minimum Order Quantity : 1 Weight : 200 Grams (g) Sensor Type : mic ultrasonic sensors Warranty : 1 year Output : 1 x analogue 420 mA + 010 V Measurement Range : 200 2000 mm Material : brass sleeve, nickelplated, plastic parts, PBT Features : Teachin via com input on pin 5 LCA2 with LinkControl Product Type : mic130/IU/M IP Rating : IP 67 Input : control input Teachin input Resolution : 0.18 mm to 0.57 mm, depending on the analogue window

Send Inquiry

lcs+600/DD Sensor Price : 23250.0 INR/Number Minimum Order Quantity : 1 Weight : 240 Grams (g) Sensor Type : lcs+ultrasonic sensors Warranty : 1 year Output : 2 x PNP Measurement Range : 600 8000 mm Material : PBT Features : Teachin via pushbutton LCA2 with LinkControl Product Type : lcs+600/DD IP Rating : IP 67 Input : com input synchronisation input Resolution : 0.18 mm

Send Inquiry

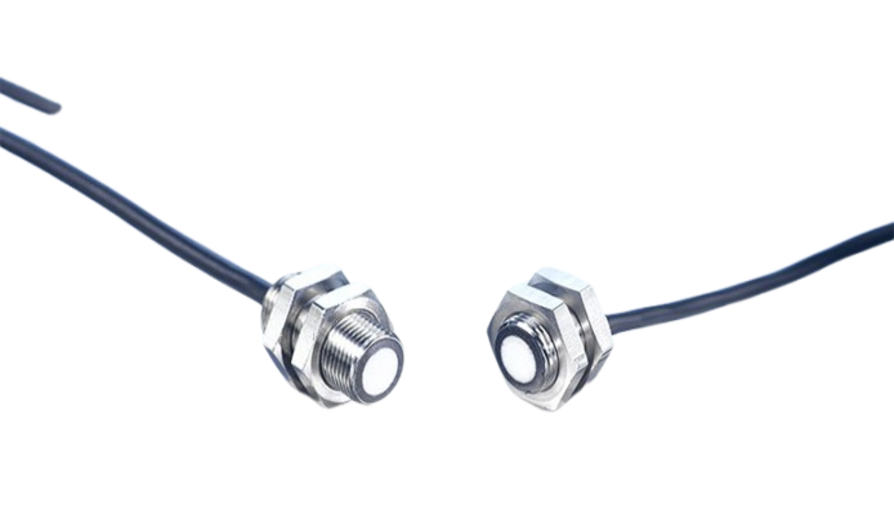

dbk+4/M12/3BEE/M18 E+S Sensor Price : 41640.0 INR/Number Minimum Order Quantity : 1 Weight : 160 Grams (g) Sensor Type : dbk+4 ultrasonic doublesheet control Warranty : 1 year Output : double sheet output pnp; missing sheet output pnp Measurement Range : papers with weights of 20 600 g/m2 Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Features : Washi, metallaminated sheets and films up to 0.2 mm thick, selfadhesive films Product Type : dbk+4/M12/3BEE/M18 E+S IP Rating : IP 65 Input : control input
