mic+35/DIU/TC Sensor

35310.0 INR/Number

Get a Price/Quote

Product Details:

Features Teach-in and numeric configuration via TouchControl LCA-2 with LinkControl
IP Rating IP 67
Measurement Range 65 - 600 mm
Sensor Type mic + ultrasonic sensor
Product Type mic+ 35/DIU/TC
Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
Input com input synchronisation input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

mic+35/DIU/TC Sensor Price And Quantity

Price 35310.0 INR/Number
Minimum Order Quantity 1 Number

mic+35/DIU/TC Sensor Product Specifications

Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
Weight 150 Grams (g)
Output analogue output, pnp: Imax = 200 mA (UB-2V)
Sensor Type mic + ultrasonic sensor
Resolution 0.025 mm to 0.17 mm, depending on the analogue window
Input com input synchronisation input
Features Teach-in and numeric configuration via TouchControl LCA-2 with LinkControl
Accuracy 1 %
Warranty 1 year
Product Type mic+ 35/DIU/TC
IP Rating IP 67
Measurement Range 65 - 600 mm

mic+35/DIU/TC Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

mic+35/DIU/TC

1 x pnp + 1 x analogue 4-20 mA / 0-10 V

Measuring Range : 65-600 mm

Design : Cylindrical M30

Operating Mode : Proximity Switch/Reflective Mode

Reflective Barrier

Window Mode

Analogue Distance Measurement

Particularities : Display

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 400 kHz

Blind Zone : 65 mm

Operating Range : 350 mm

Maximum Range : 600 mm

Resolution : 0.025 mm to 0.17 mm, depending on the analogue window

Operating Voltage : 9-30 V dc, reverse polarity protection

Type of Connection : 5 pin M12 initiator plug

Switching Hysteresis : 5 mm

Further Version : Stainless Steel

Indicators : 3-digit LED display, 2 x three-colour LED

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

pico+25/TF/U Sensor Price : 27720.0 INR/Number Minimum Order Quantity : 1 Measurement Range : 30 350 mm Input : com input synchronisation input teachin input IP Rating : IP 67 Product Type : pico+25/TF/U Weight : 30 Grams (g) Material : PVDF, PBT Sensor Type : pico+TF ultrasonic fillinglevel sensor Output : analogue output Features : Teachin via com input on pin 5 LCA2 with LinkControl Warranty : 1 year Resolution : 0.069 mm to 0.10 mm, depending on the analogue window

Send Inquiry

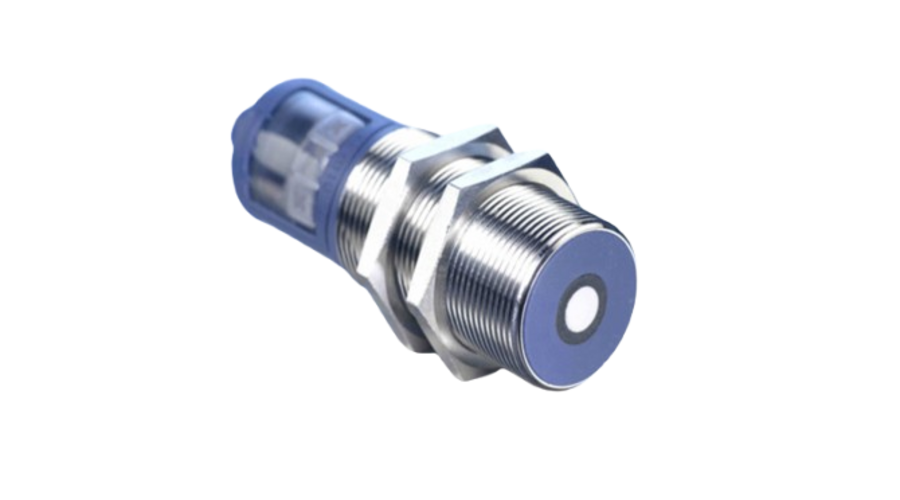

mic+35/E/TC Sensor Price : 16050.0 INR/Number Minimum Order Quantity : 1 Measurement Range : 65 600 mm Input : com input synchronisation input IP Rating : IP 67 Product Type : mic+35/E/TC Weight : 150 Grams (g) Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Sensor Type : mic + ultrasonic sensor Output : switching output npn: Imax = 200 mA (UB+2V) NOC/NCC adjustable, shortcircuitproof Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Resolution : 0.025 mm

Send Inquiry

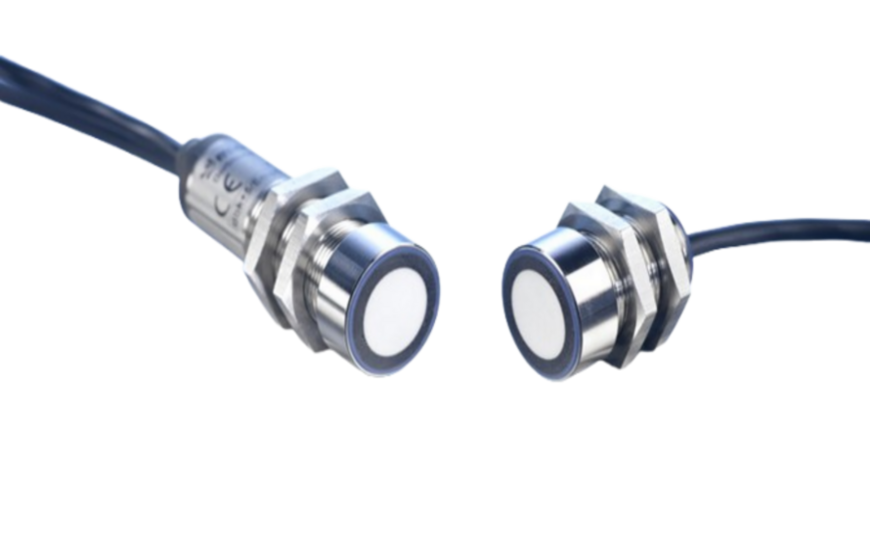

dbk+5/3BEE/M18 E+S Sensor Price : 47470.0 INR/Number Minimum Order Quantity : 1 Measurement Range : papers with weights of 100 2,000 g/m2 Input : control input IP Rating : IP 65 Product Type : dbk+5/3BEE/M18 E+S Weight : 160 Grams (g) Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Sensor Type : dbk+5 ultrasonic doublesheet control Output : double sheet output pnp; missing sheet output pnp Features : Teachin LCA2 with LinkCopy or LinkControl software Warranty : 1 year

Send Inquiry

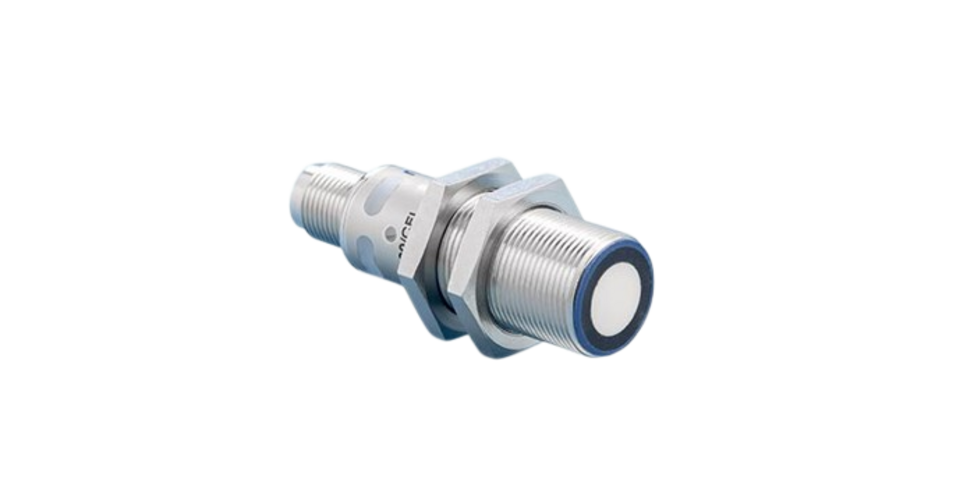

lpc+100/CFU Sensor Price : 26170.0 INR/Number Minimum Order Quantity : 1 Measurement Range : 120 1300 mm Input : com input synchronisation input teachin input IP Rating : IP 67 Product Type : lpc+100/CFU Weight : 35 Grams (g) Material : brass sleeve, nickelplated, plastic parts, PBT, PA Sensor Type : lpc+ ultrasonic sensors Output : 1 x PushPull + 1 x analog 010 V Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Warranty : 1 year

Send Inquiry
