dbk+5/3BEE/M18 E+S Sensor

47470.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range papers with weights of 100 - 2,000 g/m2
Features Teach-in LCA-2 with LinkCopy or LinkControl software
Sensor Type dbk+5 ultrasonic double-sheet control
IP Rating IP 65
Product Type dbk+5/3BEE/M18 E+S
Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
Input control input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

dbk+5/3BEE/M18 E+S Sensor Price And Quantity

Price 47470.0 INR/Number
Minimum Order Quantity 1 Number

dbk+5/3BEE/M18 E+S Sensor Product Specifications

Weight 160 Grams (g)
Features Teach-in LCA-2 with LinkCopy or LinkControl software
IP Rating IP 65
Warranty 1 year
Output double sheet output pnp; missing sheet output pnp
Sensor Type dbk+5 ultrasonic double-sheet control
Measurement Range papers with weights of 100 - 2,000 g/m2
Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
Input control input
Product Type dbk+5/3BEE/M18 E+S

dbk+5/3BEE/M18 E+S Sensor Trade Information

Main Domestic Market All India

Product Description

dbk+5/3BEE/M18 E+S

2 x pnp

Working range : Papers with weights of 100-2,000 g/m²

Design : Cylindrical M18

Operating Mode : Double sheet control

Transducer Frequency : 200 kHz

Blind Zone: 7 mm in front of transmitter and receiver

Type of Connection : 2 m PUR Cable, 7 x 0.14 mm²

Transmitter/Receiver Spacing : 30-70 mm; Optimal: 50mm +,- 3 mm

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

mic+600/DD/TC Sensor Price : 26170.0 INR/Number Minimum Order Quantity : 1 Product Type : mic+600/DD/TC Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Sensor Type : mic + ultrasonic sensor Weight : 270 Grams (g) IP Rating : IP 67 Measurement Range : 600 8000 mm Input : com input synchronisation input Resolution : 0.18 mm Features : 2 pnp output Warranty : 1 year Accuracy : 1 %

Send Inquiry

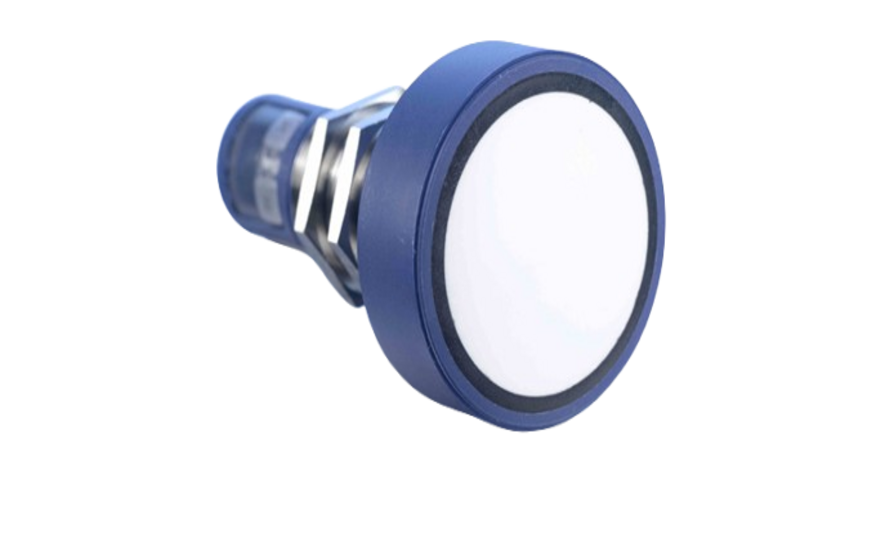

crm+600/IU/TC/E Sensor Price : 38810.0 INR/Number Minimum Order Quantity : 1 Product Type : crm+600/IU/TC/E Material : stainless steel, plastic parts: PBT, TPU Output : analogue output Sensor Type : crm + ultrasonic sensor Weight : 270 Grams (g) IP Rating : IP 67 Measurement Range : 600 8000 mm Input : com input synchronisation input Resolution : 0.18 mm Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Warranty : 1 year Accuracy : 1 %

Send Inquiry

mic-340/IU/M Sensor Price : 30450.0 INR/Number Minimum Order Quantity : 1 Product Type : mic340/IU/M Material : brass sleeve, nickelplated, plastic parts, PBT Output : 1 x analogue 420 mA + 010 V Sensor Type : mic ultrasonic sensors Weight : 260 Grams (g) IP Rating : IP 67 Measurement Range : 350 5000 mm Input : com input Teachin input Resolution : 0.18 mm to 1.5 mm, depending on the analogue window Features : Teachin via com input on pin 5 LCA2 with LinkControl Warranty : 1 year

Send Inquiry

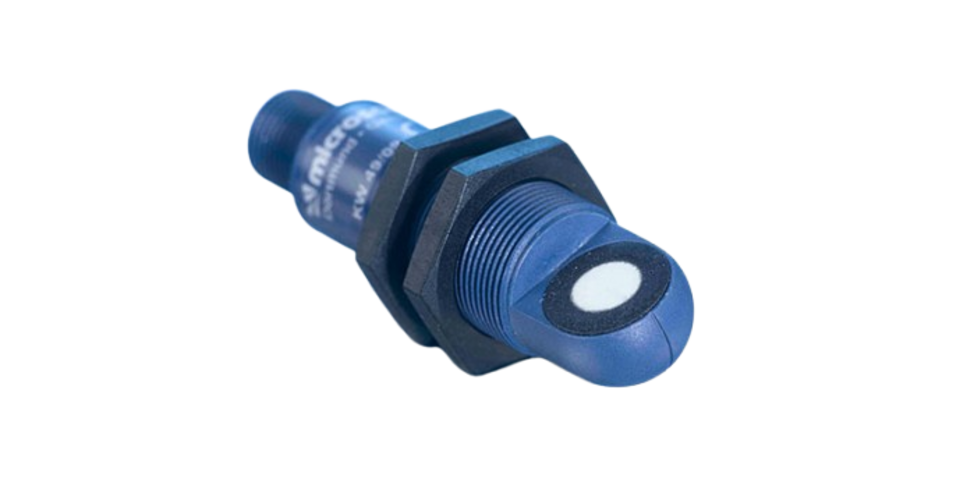

nero-15/WK/CI Sensor Price : 14500.0 INR/Number Minimum Order Quantity : 1 Product Type : nero15/WK/CI Material : PBT Output : analogue output Sensor Type : nero ultrasonic sensors Weight : 20 Grams (g) IP Rating : IP 67 Measurement Range : 20 250 mm Input : Teachin input Resolution : 0.056 mm to 0.297 mm, depending on the analogue window Features : Teachin Warranty : 1 year

Send Inquiry
