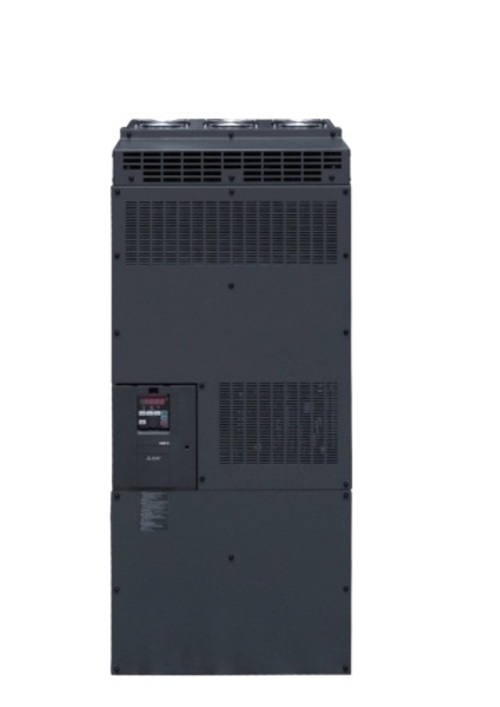

FR-A842-12120-2-60 VFD
1523700 INR/Number
Product Details:
- Drive Type Variable Frequency Drive
- Length 440 Millimeter (mm)
- Weight 243 Kilograms (kg)
- Product Type FR-A842-12120-2-60
- Frequency 0.2-590 Hertz (HZ)
- Width 680 Millimeter (mm)
- IP Rating IP00
- Click to View more
X
FR-A842-12120-2-60 VFD Price And Quantity
- 1523700 INR/Number
- 1 Number
FR-A842-12120-2-60 VFD Product Specifications
- Variable Frequency Drive
- 440 Millimeter (mm)
- 1580 Millimeter (mm)
- 243 Kilograms (kg)
- FR-A842-12120-2-60
- 1 Year
- 0.2-590 Hertz (HZ)
- 680 Millimeter (mm)
- IP00
- 1
FR-A842-12120-2-60 VFD Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Series | FR-A SERIES |
|---|---|
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 430 |
| Min. Permissible Voltage (V) | 430 |
| Maximum Rated Voltage (V) | 780 |
| Max. Permissible Voltage (V) | 780 |
| Current Type | DC |
| Phases | 1 |
| Rated Output Current SLD (A) | 1.212 |
| Rated Output Current LD (A) | 1.094 |
| Rated Output Current ND (A) | 962 |
| Rated Output Current HD (A) | 866 |
| Rated Motor Capacity SLD (kW) | 630 |
| Rated Motor Capacity LD (kW) | 560 |
| Rated Motor Capacity ND (kW) | 500 |
| Rated Motor Capacity HD (kW) | 450 |
| Frequency Range (Hz) | 0,2ï590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC, CC-LINK IE FIELD NETWORK |
| Leakage Current (mA) | 2(DELTA) / 1(STAR) |
| Power Loss SLD (W) | 9.810 |
| Power Loss LD (W) | 8.630 |
| Power Loss ND (W) | 7.400 |
| Power Loss HD (W) | 6.490 |
| Standby Power Consumption (W) | 111 |
| Protection Class | IP00 |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email

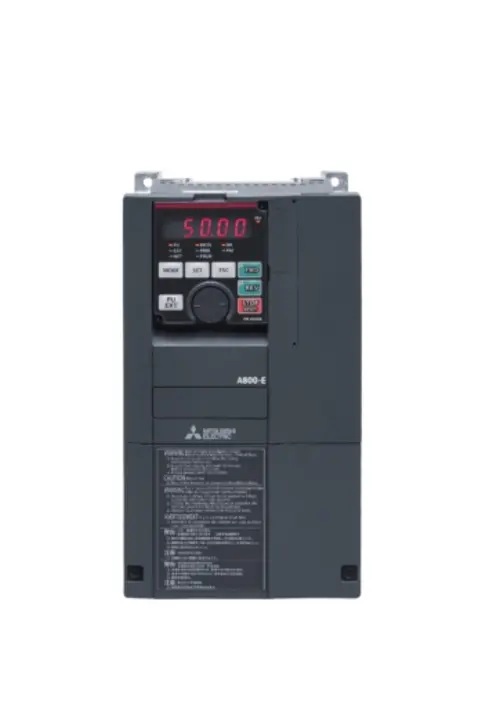

Other Products in 'Variable Frequency Drive (VFD)' category
