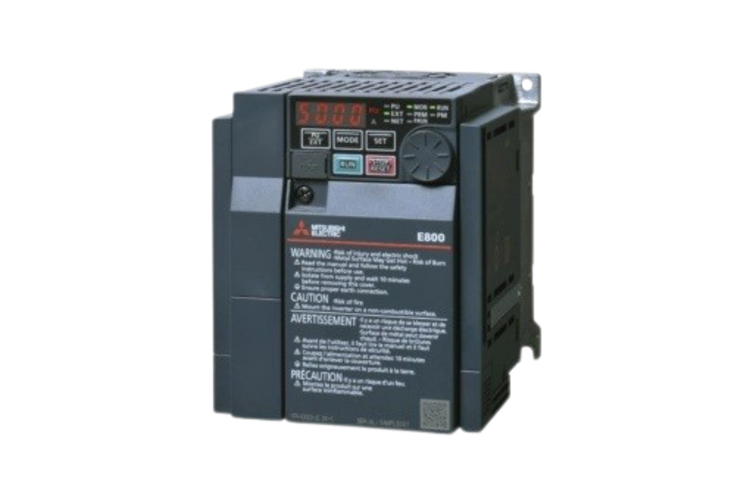

FR-E840-0016-4-60 VFD

18600 INR/Number

Get a Price/Quote

Product Details:

Phase Three
IP Rating IP 20
Warranty 1 Year
Features verter; Pn:0,4-0,75kW;3x380-480V;In max:2,1A;(0,4kW;1,6A);RS-485;IP20
Product Type FR-E840-0016-4-60
Frequency 0.2-590 Hertz (HZ)
Drive Type Variable Frequency Drive
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

FR-E840-0016-4-60 VFD Price And Quantity

Minimum Order Quantity 1 Number
Price 18600 INR/Number

FR-E840-0016-4-60 VFD Product Specifications

Height 128 Millimeter (mm)
Width 108 Millimeter (mm)
Warranty 1 Year
Drive Type Variable Frequency Drive
Length 129.5 Millimeter (mm)
Weight 1.2 Kilograms (kg)
Frequency 0.2-590 Hertz (HZ)
Phase Three
Product Type FR-E840-0016-4-60
IP Rating IP 20
Features verter; Pn:0,4-0,75kW;3x380-480V;In max:2,1A;(0,4kW;1,6A);RS-485;IP20

FR-E840-0016-4-60 VFD Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

SeriesFR-E800 SERIES

TypeFR-E800 RS485 INVERTER

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)480

Max. Permissible Voltage (V)528

Current TypeAC

Phases3

Rated Output Current LD (A)2.1

Rated Output Current ND (A)1.6

Rated Motor Capacity LD (kW)0.75

Rated Motor Capacity ND (kW)0.4

Frequency Range (Hz)0.2ï590

Motor TypeINDUCTION MOTOR, PM MOTOR

Brake Chopper ED (%)100

Integrated EMC FilterNO

Safe Torque Off (STO)YES

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayBUILT-IN

Display Type4 DIGITS LED

PLC FunctionYES

Program Memory2K

Program Memory UnitSTEPS

Integrated Digital Inputs7

Digital Outputs (Transistor)2

Digital Outputs (Relay)1

Integrated Analogue Inputs2

Integrated Analogue Outputs1

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

RS-4851

USB1 (MINI B)

Ethernet PortNO

Built-In NetworkMODBUS-RTU

Leakage Current (mA)1.2

Power Loss LD (W)33

Power Loss ND (W)25

Protection ClassIP20

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Variable Frequency Drive (VFD)' category

ATV320D11M3C VFD Price : 119110.0 INR/Number Minimum Order Quantity : 1 Height : 330 Millimeter (mm) Width : 180 Millimeter (mm) Length : 198 Millimeter (mm) Drive Type : Variable Frequency Drive Frequency : 4 Kilohertz ( KHZ ) Product Type : ATV320D11M3C Warranty : 1 Year IP Rating : IP20 Weight : 6.8 Kilograms (kg) Phase : 3 Voltage : 240 Volt (v) Power : 11000 Watt (w)

Send Inquiry

FR-D720S-042-E16 VFD Price : 9420 INR/Number Minimum Order Quantity : 1 Height : 128 Millimeter (mm) Width : 68 Millimeter (mm) Length : 162.5 Millimeter (mm) Drive Type : Variable Frequency Drive Frequency : 0.2400 Hertz (HZ) Product Type : FRD720S042E16 Warranty : 1 Year IP Rating : IP 20 Weight : 1.1 Kilograms (kg) Phase : 1

Send Inquiry

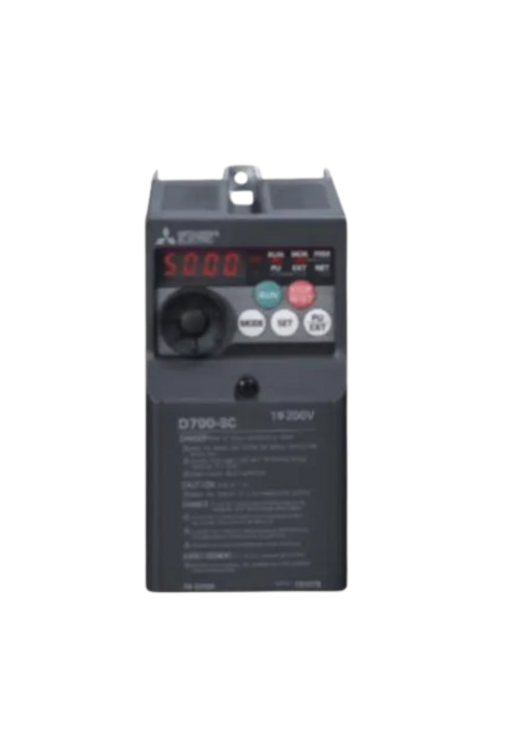

FR-D740-050-E16 VFD Price : 17320 INR/Number Minimum Order Quantity : 1 Height : 128 Millimeter (mm) Width : 108 Millimeter (mm) Length : 129.5 Millimeter (mm) Drive Type : Variable Frequency Drive Frequency : 400 Hertz (HZ) Product Type : FRD740050E16 Warranty : 1 Year IP Rating : IP 20 Phase : Three Voltage : 400 Volt (v) Power : 3700 Watt (w)
