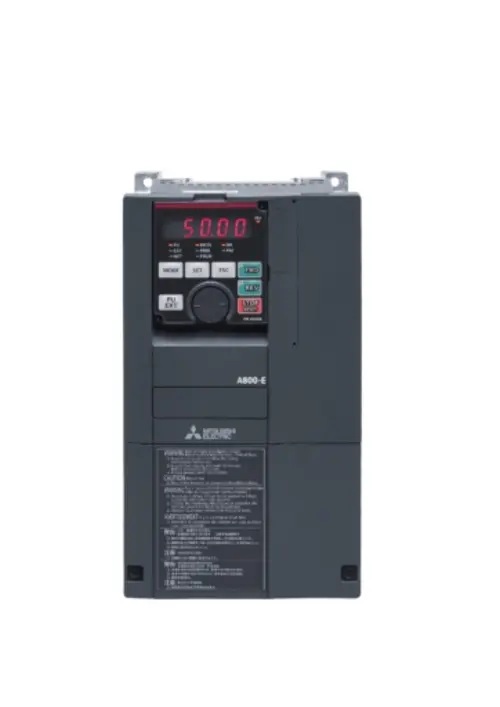

FR-A840-00038-2-60 VFD

Product Description

SeriesFR-A SERIES

TypeFR-A800-E INVERTER

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)500

Max. Permissible Voltage (V)550

Current TypeAC

Phases3

Rated Output Current SLD (A)3.8

Rated Output Current LD (A)3.5

Rated Output Current ND (A)2.5

Rated Output Current HD (A)1.5

Rated Motor Capacity SLD (kW)1.5

Rated Motor Capacity LD (kW)1.5

Rated Motor Capacity ND (kW)0.75

Rated Motor Capacity HD (kW)0.4

Motor TypeINDUCTION MOTOR, PM MOTOR

Brake Chopper ED (%)100

Integrated EMC FilterYES

Safe Torque Off (STO)YES

Regenerative (4Q)NO

Integrated DC ChokeNO

DisplayFR-DU08

Display Type5 DIGITS LED (12 SEGMENT)

PLC FunctionYES

Program Memory6K

Program Memory UnitSTEPS

Integrated Digital Inputs12

Digital Outputs (Transistor)5

Digital Outputs (Relay)2

Integrated Analogue Inputs3

Integrated Analogue Outputs2

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

RS-485OPTIONAL

USB1+1 MINI

Ethernet Port1

Built-In NetworkCC-LINK IE FIELD NETWORK BASIC

MODBUS/TCP

SLMP

iQSS

Leakage Current (mA)35(DELTA) / 2(STAR)

Power Loss SLD (W)75

Power Loss LD (W)70

Power Loss ND (W)55

Power Loss HD (W)40

Standby Power Consumption (W)19

Protection ClassIP20

Frequency Range (Hz)0.2ï590
