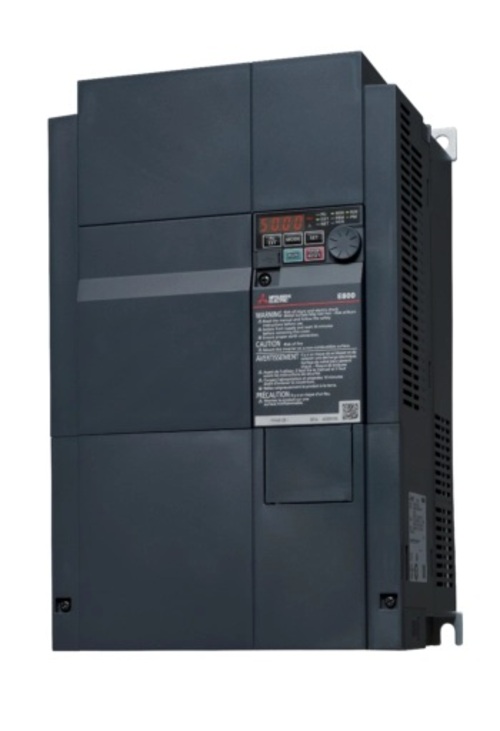

FR-E840-0440-4-60 VFD
69920 INR/Number
Product Details:
- Drive Type Variable Frequency Drive
- Width 220 Millimeter (mm)
- IP Rating IP 20
- Length 190 Millimeter (mm)
- Frequency 0.2-590 Hertz (HZ)
- Phase Three
- Height 350 Millimeter (mm)
- Click to View more
X
FR-E840-0440-4-60 VFD Price And Quantity
- 1 Number
- 69920 INR/Number
FR-E840-0440-4-60 VFD Product Specifications
- 220 Millimeter (mm)
- Three
- 350 Millimeter (mm)
- IP 20
- 0.2-590 Hertz (HZ)
- Variable Frequency Drive
- 190 Millimeter (mm)
- 1 Year
- FR-E840-0440-4-60
- 11 Kilograms (kg)
FR-E840-0440-4-60 VFD Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 60 |
| Rated Output Current ND (A) | 44 |
| Rated Motor Capacity LD (kW) | 30 |
| Rated Motor Capacity ND (kW) | 22 |
| Frequency Range (Hz) | 0.2ï590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1.2 |
| Power Loss LD (W) | 589 |
| Power Loss ND (W) | 401 |
| Protection Class | IP20 |
