dbk+4/Empf/3CDD/M18 Sensor

31520.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range papers with weights of 20 - 2,000 g/m2
IP Rating IP 65
Sensor Type dbk+4 ultrasonic double-sheet control
Features Washi, metal-laminated sheets and films up to 0.4 mm thick, self-adhesive films, sheet metals up to 0.3 mm thick, fine corrugated card, wafers, PCBs
Product Type dbk+4/Empf/3CDD/M18
Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
Input control input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

dbk+4/Empf/3CDD/M18 Sensor Price And Quantity

Price 31520.0 INR/Number
Minimum Order Quantity 1 Number

dbk+4/Empf/3CDD/M18 Sensor Product Specifications

Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
Warranty 1 year
Features Washi, metal-laminated sheets and films up to 0.4 mm thick, self-adhesive films, sheet metals up to 0.3 mm thick, fine corrugated card, wafers, PCBs
Product Type dbk+4/Empf/3CDD/M18
Measurement Range papers with weights of 20 - 2,000 g/m2
Input control input
IP Rating IP 65
Output double sheet output pnp; missing sheet output pnp
Weight 100 Grams (g)
Sensor Type dbk+4 ultrasonic double-sheet control

dbk+4/Empf/3CDD/M18 Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

dbk+4/Empf/3CDD/M18

2 x pnp

Working range : Papers with weights of 20-2,000 g/m²

Design : Cylindrical M18

Operating Mode : Double sheet control

Transducer Frequency : 400 kHz

Blind Zone: 7 mm in front of transmitter and receiver

Type of Connection : 2 m PUR Cable, 7 x 0.14 mm²

Transmitter/Receiver Spacing : 20-60 mm; Optimal: 40mm +,- 3 mm

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

mic+35/DIU/TC/E Sensors Price : 37260.0 INR/Number Minimum Order Quantity : 1 Sensor Type : mic + ultrasonic sensor Weight : 150 Grams (g) Product Type : mic+35/DIU/TC/E Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Input : com input synchronisation input Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Material : stainless steel, plastic parts: PBT, TPU IP Rating : IP 67 Measurement Range : 65 600 mm Warranty : 1 year Resolution : 0.025 mm to 0.10 mm, depending on the analogue window Accuracy : 1 %

Send Inquiry

cube-130/FFIU Sensor Price : 29100.0 INR/Number Minimum Order Quantity : 1 Sensor Type : Cube Ultrasonic Sensors Weight : 120 Grams (g) Product Type : cube35/FFIU Features : Teachin via pushbutton Teachin via com input on pin 5 LCA2 with LinkControl IOLink Input : com input synchronisation input teachin input Output : analogue output ; PushPull, UB3 V, UB+3 V, Imax = 100 mA Material : PA IP Rating : IP 67 Measurement Range : 65 600 mm Warranty : 1 year Resolution : 0.1 mm

Send Inquiry

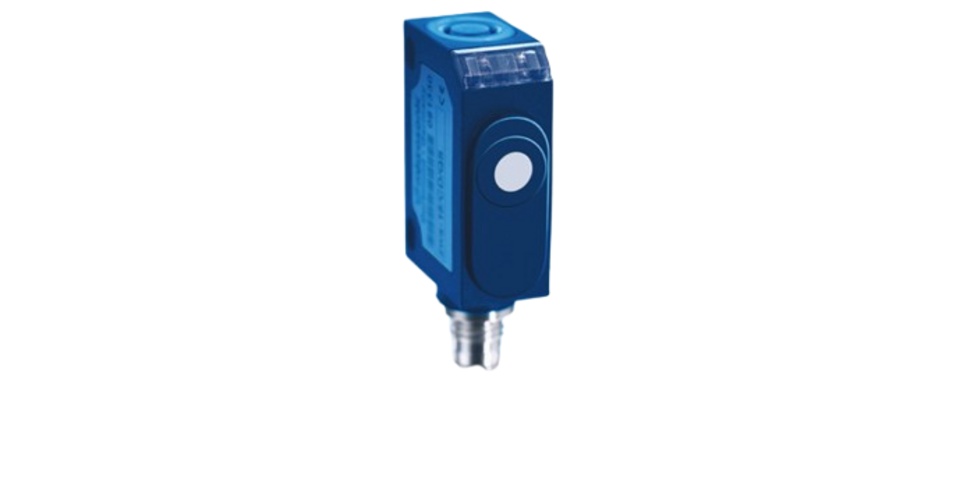

zws-7/CD/QS Sensor Price : 16000.0 INR/Number Minimum Order Quantity : 1 Sensor Type : zws ultrasonic proximity switches Weight : 10 Grams (g) Product Type : zws7/CD/QS Features : 250 Hz switching frequency small cuboid design slim sound field UL Listed Input : Synchronization input Output : PNP Material : ABS IP Rating : IP 67 Measurement Range : 20 100 mm Warranty : 1 year Resolution : 0.20 mm

Send Inquiry

lcs-35/DDD/QP Sensor Price : 25200.0 INR/Number Minimum Order Quantity : 1 Sensor Type : lcs ultrasonic sensors Weight : 200 Grams (g) Product Type : lcs35/DDD/QP Features : LCA2 with LinkControl Input : com input Output : 3 x pnp Material : PBT IP Rating : IP 65 Measurement Range : 65 600 mm Warranty : 1 year Resolution : 0.18 mm

Send Inquiry
