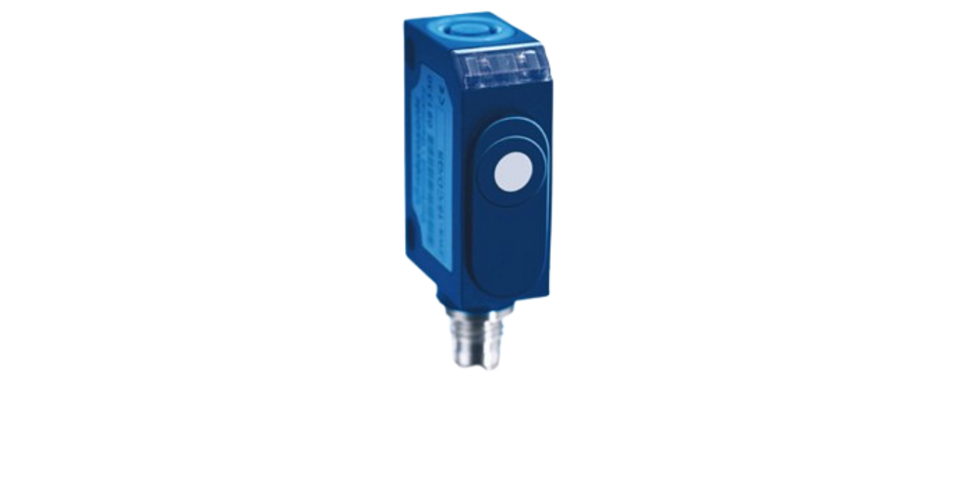

zws-7/CD/QS Sensor

16000.0 INR/Number

Get a Price/Quote

Product Details:

Features 250 Hz switching frequency small cuboid design slim sound field UL Listed
Sensor Type zws ultrasonic proximity switches
Measurement Range 20 - 100 mm
IP Rating IP 67
Product Type zws-7/CD/QS
Material ABS
Input Synchronization input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

zws-7/CD/QS Sensor Price And Quantity

Price 16000.0 INR/Number
Minimum Order Quantity 1 Number

zws-7/CD/QS Sensor Product Specifications

Material ABS
Measurement Range 20 - 100 mm
Resolution 0.20 mm
Sensor Type zws ultrasonic proximity switches
IP Rating IP 67
Output PNP
Product Type zws-7/CD/QS
Weight 10 Grams (g)
Input Synchronization input
Warranty 1 year
Features 250 Hz switching frequency small cuboid design slim sound field UL Listed

zws-7/CD/QS Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

zws-7/CD/QS

Echo output

Measuring Range : 20-100 mm

Design : Cuboid

Operating Mode/Basic Functions : Proximity Switch/Reflective Sensor

Special Features : 250 Hz Switching Frequency

Measurement Method : Echo Propagation Time Measurement

Ultrasonic Frequency : 380 kHz

Blind Zone : 20 mm

Operating Range : 70 mm

Limit Scanning Range : 100 mm

Operating Voltage : 20 V to 30 V dc, Reverse Polarity Protection

Type of Connection : 4-pin M8 Circular Connector
