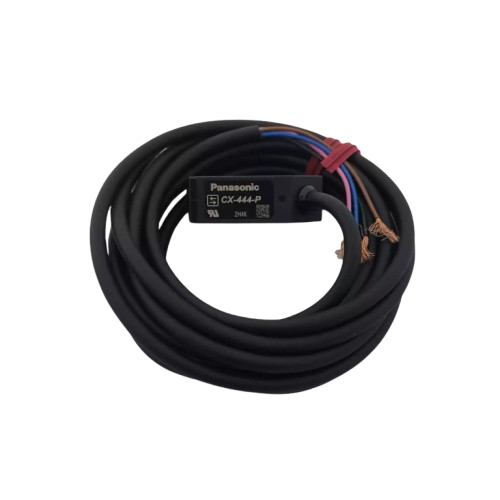

CX-444-P Sensor
2300.0 INR/Number
Product Details:
- Features Adjustable range reflective
- Sensor Type Compact Photoelectric Sensor
- Cable Length 2 Meter (m)
- Measurement Range 20 to 100 mm
- Application Adjustable range reflective
- Product Type CX-444-P
- Material Enclosure: PBT (Polybutylene terephthalate) Front cover: Polycarbonate Indicator cover: Polycarbonate
- Click to View more
X
CX-444-P Sensor Price And Quantity
- 1 Number
- 2300.0 INR/Number
CX-444-P Sensor Product Specifications
- 20 to 100 mm
- CX-444-P
- Adjustable range reflective
- 65 Grams (g)
- Adjustable range reflective
- Compact Photoelectric Sensor
- Enclosure: PBT (Polybutylene terephthalate) Front cover: Polycarbonate Indicator cover: Polycarbonate
- 2 Meter (m)
- PNP open-collector transistor
CX-444-P Sensor Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Product Number | CX-444-P |
|---|---|
| Part Number | CX-444-P |
| Products Name | Compact Photoelectric Sensor |
| Product details | Adjustable range reflective |
| Protection | IP67 (IEC) |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL Recognition Certification |
| Adjustable range | 20 to 100 mm 0.787 to 3.937 in |
| Sensing range(with white non-glossy paper) | 15 to 100 mm 0.591 to 3.937 in |
| Hysteresis | 2 % or less of operation distance(with white non-glossy paper) |
| Repeatability | Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper) |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 20 mA or less |
| Output | PNP open-collector transistor |
| Output: Output operation | Switchable either Detection-ON or Detection-OFF |
| Output: Short-circuit protection | Incorporated |
| Response time | 1 ms or less |
| Operation indicator | Orange LED (lights up when the output is ON) |
| Stability indicator | Green LED(lights up under stable operating condition) |
| Distance adjuster | 5-turn mechanical adjuster |
