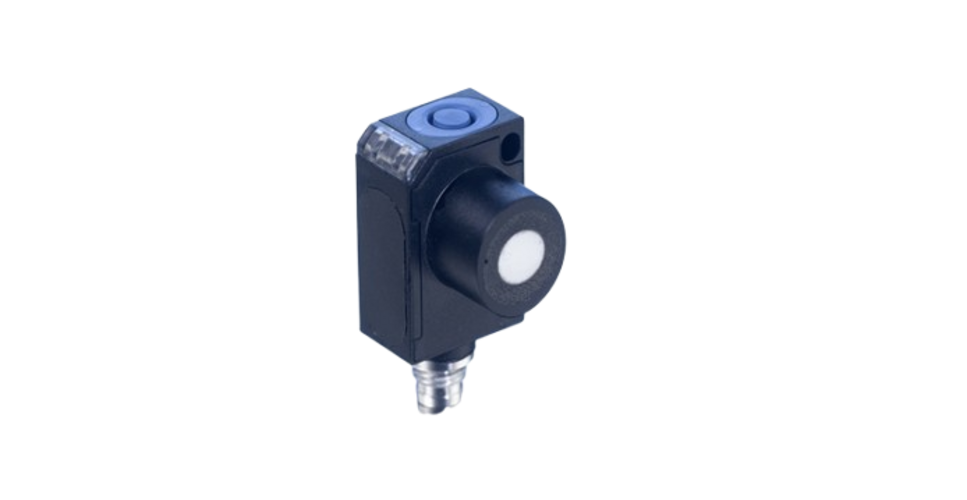

zws-25/CE/QS Sensor

16000.0 INR/Number

Get a Price/Quote

Product Details:

Sensor Type zws ultrasonic sensors
Features Teach-in via push-button
Measurement Range 30 - 350 mm
IP Rating IP 67
Product Type zws-25/CE/QS
Material ABS
Input Synchronization input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

zws-25/CE/QS Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 16000.0 INR/Number

zws-25/CE/QS Sensor Product Specifications

Resolution 0.20 mm
Features Teach-in via push-button
Sensor Type zws ultrasonic sensors
Product Type zws-25/CE/QS
Measurement Range 30 - 350 mm
IP Rating IP 67
Weight 11 Grams (g)
Material ABS
Output NPN
Warranty 1 year
Input Synchronization input

zws-25/CE/QS Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

zws-25/CE/QS

1 x npn

Measuring Range : 30-350 mm

Design : Cuboidal

Operating Mode : Proximity Switch/Reflective Sensor

Measurement Method : Echo Propagation Time Measurement

Ultrasonic Frequency : 320 kHz

Blind Zone : 30 mm

Operating Range : 250 mm

Maximum Range : 350 mm

Operating Voltage : 20 V to 30 V dc, Reverse Polarity Protection

Type of Connection : 4-pin M8 Circular Connector

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

mic+130/D/TC/E Sensors Price : 18000.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Material : stainless steel, plastic parts: PBT, TPU Sensor Type : mic + ultrasonic sensor Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Product Type : mic+130/D/TC/E Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Warranty : 1 year Measurement Range : 200 2000 mm Weight : 150 Grams (g) Input : com input synchronisation input Resolution : 0.18 mm

Send Inquiry

zws-24/CD/QS Sensor Price : 16000.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Material : ABS Sensor Type : zws ultrasonic sensors Features : Teachin via pushbutton Product Type : zws24/CD/QS Output : PNP Warranty : 1 year Measurement Range : 50 350 mm Weight : 10 Grams (g) Input : Synchronization input Resolution : 0.20 mm

Send Inquiry

lcs+600/IU Sensor Price : 29000.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Material : PBT Sensor Type : lcs+ ultrasonic sensors Features : Teachin via pushbutton LCA2 with LinkControl Product Type : lcs+600/IU Output : analogue output Warranty : 1 year Measurement Range : 600 8000 mm Weight : 240 Grams (g) Input : com input synchronisation input Resolution : 0.18 mm to 2.4 mm, depending on the analogue window

Send Inquiry

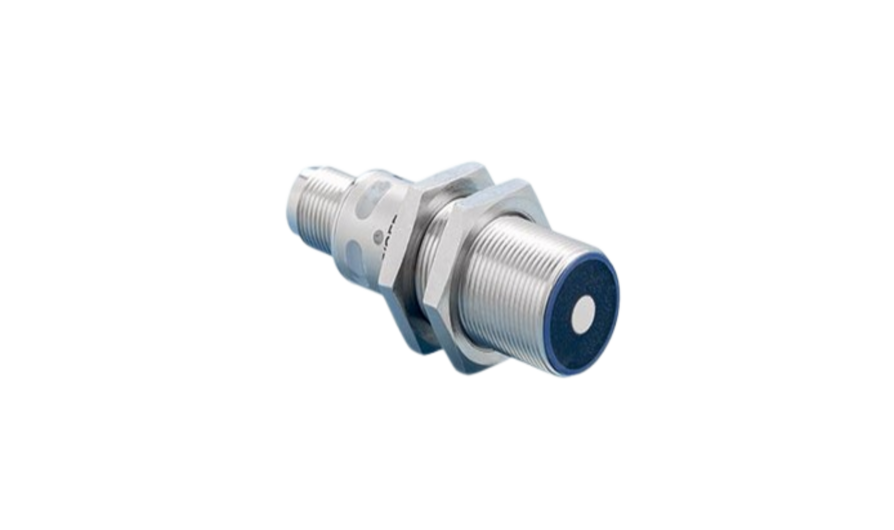

lpc+15/CFI Sensor Price : 26170.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Material : brass sleeve, nickelplated, plastic parts, PBT, PA Sensor Type : lpc+ ultrasonic sensors Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Product Type : lpc+15/CFI Output : 1 x PushPull + 1 x analog Warranty : 1 year Measurement Range : 20 250 mm Weight : 35 Grams (g) Input : com input synchronisation input teachin input

Send Inquiry
