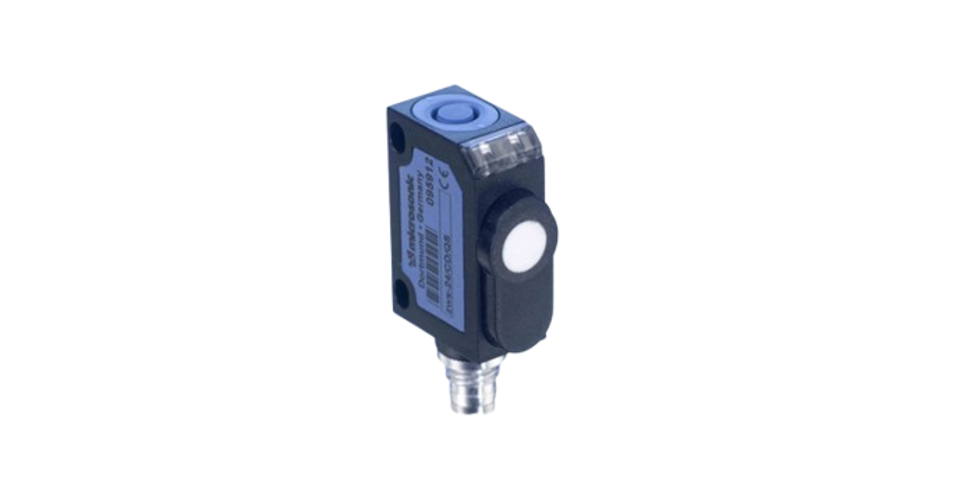

zws-24/CE/QS Sensor

16000.0 INR/Number

Get a Price/Quote

Product Details:

Features Teach-in via push-button
Sensor Type zws ultrasonic sensors
IP Rating IP 67
Measurement Range 50 - 350 mm
Product Type zws-24/CE/QS
Material ABS
Input Synchronization input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

zws-24/CE/QS Sensor Price And Quantity

Price 16000.0 INR/Number
Minimum Order Quantity 1 Number

zws-24/CE/QS Sensor Product Specifications

Weight 10 Grams (g)
IP Rating IP 67
Resolution 0.20 mm
Sensor Type zws ultrasonic sensors
Features Teach-in via push-button
Material ABS
Product Type zws-24/CE/QS
Output NPN
Measurement Range 50 - 350 mm
Warranty 1 year
Input Synchronization input

zws-24/CE/QS Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

zws-24/CE/QS

1 x npn

Measuring Range : 50-350 mm

Design : Cuboidal

Operating Mode : Proximity Switch/Reflective Sensor

Measurement Method : Echo Propagation Time Measurement

Ultrasonic Frequency : 500 kHz

Blind Zone : 50 mm

Operating Range : 240 mm

Maximum Range : 350 mm

Operating Voltage : 20 V to 30 V dc, Reverse Polarity Protection

Type of Connection : 4-pin M8 Circular Connector

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

crm+130/D/TC/E Sensor Price : 21890.0 INR/Number Minimum Order Quantity : 1 Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Product Type : crm+130/D/TC/E Material : stainless steel, plastic parts: PBT, TPU Sensor Type : crm + ultrasonic sensor IP Rating : IP 67 Weight : 150 Grams (g) Input : com input synchronisation input Warranty : 1 year Measurement Range : 200 2000 mm Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Resolution : 0.18 mm Accuracy : 1 %

Send Inquiry

mic+130/D/TC Sensor Price : 16050.0 INR/Number Minimum Order Quantity : 1 Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Product Type : mic+130/D/TC Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Sensor Type : mic + ultrasonic sensor IP Rating : IP 67 Weight : 150 Grams (g) Input : com input synchronisation input Measurement Range : 2002000mm Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Resolution : 0.18 mm Accuracy : 1 %

Send Inquiry

pico+100/I Sensor Price : 20330.0 INR/Number Minimum Order Quantity : 1 Output : analogue output Product Type : pico+100/I Material : brass sleeve, nickelplated, plastic parts, PBT Sensor Type : pico+ ultrasonic sensors IP Rating : IP 67 Weight : 30 Grams (g) Input : com input synchronisation input teachin input Warranty : 1 year Measurement Range : 120 1300 mm Features : Teachin via com input on pin 5 LCA2 with LinkControl Resolution : 0.069 mm to 0.38 mm, depending on the analogue window

Send Inquiry

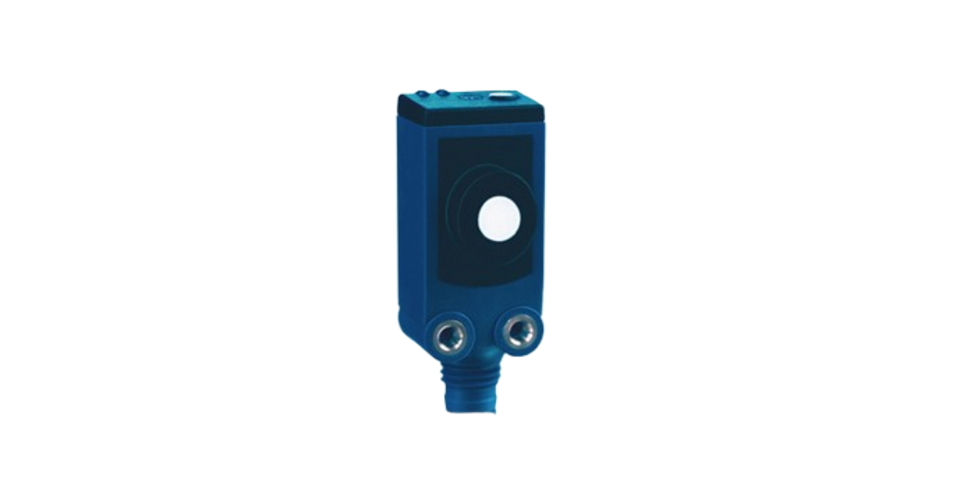

sks-15/CU Sensor Price : 19000.0 INR/Number Minimum Order Quantity : 1 Output : analogue output Product Type : sks15/CU Material : ABS Sensor Type : sks ultrasonic sensors IP Rating : IP 67 Weight : 8 Grams (g) Warranty : 1 year Measurement Range : 20 250 mm Features : Teachin via pushbutton Resolution : 0.10 mm

Send Inquiry
