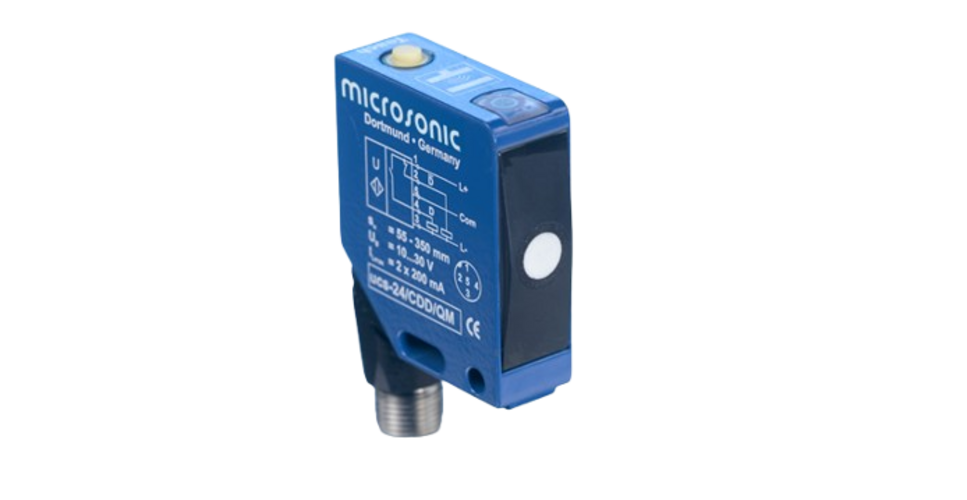

ucs-24/CFF Sensor

21000.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range 55 - 350 mm
Sensor Type ucs ultrasonic sensors
Features cuboid IO-Link Version 1.1 Smart Sensor Profile UL Listed
IP Rating IP 67
Product Type ucs-24/CFF
Material Zinc die-cast, plastic parts: PBT
Input Com input Synchronization input Teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ucs-24/CFF Sensor Price And Quantity

Price 21000.0 INR/Number
Minimum Order Quantity 1 Number

ucs-24/CFF Sensor Product Specifications

Product Type ucs-24/CFF
Warranty 1 year
Weight 65 Grams (g)
IP Rating IP 67
Sensor Type ucs ultrasonic sensors
Input Com input Synchronization input Teach-in input
Features cuboid IO-Link Version 1.1 Smart Sensor Profile UL Listed
Output 2 x Push-Pull
Resolution 0.10 mm
Measurement Range 55 - 350 mm
Material Zinc die-cast, plastic parts: PBT

ucs-24/CFF Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

ucs-24/CFF

2 x push-pull

Measuring Range : 55-350 mm

Design : Cuboid

Operating Mode : IO-Link

Proximity Switch/Reflective Mode

Special Features : Cuboid

IO-Link Version 1.1

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 500 kHz

Blind Zone : 55 mm

Operating Range : 240 mm

Limit Scanning Range : 350 mm

Operating Voltage : 10-30 V dc, Reverse Polarity Protection

Type of Connection : 5-pin M12 Circular Connector

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

crm+340/DIU/TC/E Sensor Price : 43100.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Weight : 210 Grams (g) Product Type : crm+340/DIU/TC/E Material : stainless steel, plastic parts: PBT, TPU Measurement Range : 350 5000 mm Output : analogue output, pnp: Imax = 200 mA (UB2V) Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Sensor Type : crm + ultrasonic sensor Warranty : 1 year Resolution : 0.025 mm Input : com input synchronisation input

Send Inquiry

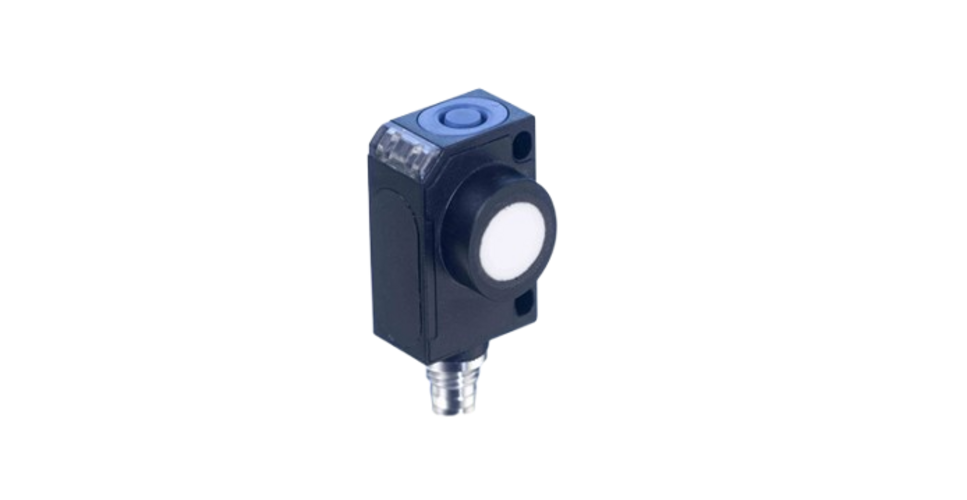

zws-35/CE/QS Sensor Price : 16000.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Weight : 11 Grams (g) Product Type : zws35/CE/QS Material : ABS Measurement Range : 64 600 mm Output : NPN Features : Teachin via pushbutton Sensor Type : zws ultrasonic sensors Warranty : 1 year Resolution : 0.20 mm Input : Synchronization input
