pico+35/U Sensors

20330.0 INR/Number

Get a Price/Quote

Product Details:

Measurement Range 65 - 600 mm
Features Teach-in via com input on pin 5 LCA-2 with LinkControl
IP Rating IP 67
Sensor Type pico+ ultrasonic sensors
Product Type pico+35/U
Material brass sleeve, nickel-plated, plastic parts, PBT
Input com input synchronisation input teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

pico+35/U Sensors Price And Quantity

Minimum Order Quantity 1 Number
Price 20330.0 INR/Number

pico+35/U Sensors Product Specifications

Sensor Type pico+ ultrasonic sensors
Material brass sleeve, nickel-plated, plastic parts, PBT
IP Rating IP 67
Product Type pico+35/U
Warranty 1 year
Weight 30 Grams (g)
Output analogue output
Input com input synchronisation input teach-in input
Resolution 0.069 mm to 0.17 mm, depending on the analogue window
Measurement Range 65 - 600 mm
Features Teach-in via com input on pin 5 LCA-2 with LinkControl

pico+35/U Sensors Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

piko+35/U

1 x analogue 0-10 V

Measuring Range : 65-600 mm

Design : Cylindrical M18

Operating Mode : Analogue Distance Measurement

Particularities : UL Listed

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 400 kHz

Blind Zone : 65 mm

Operating Range : 350 mm

Maximum Range : 600 mm

Operating Voltage : 15 V bis 30 V DC, verpolfest

Type of Connection : 5 pin M12 initiator plug

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

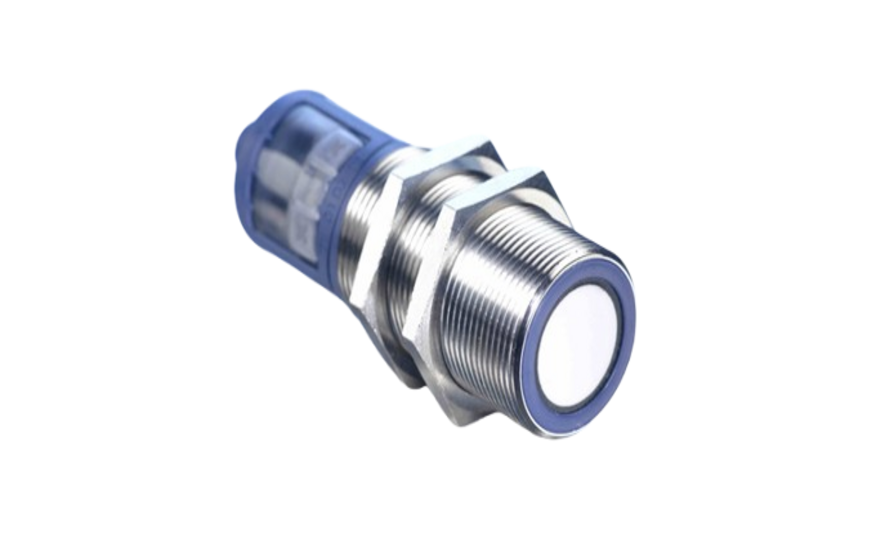

crm+130/D/TC/E Sensor Price : 21890.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Product Type : crm+130/D/TC/E Sensor Type : crm + ultrasonic sensor IP Rating : IP 67 Material : stainless steel, plastic parts: PBT, TPU Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Measurement Range : 200 2000 mm Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Input : com input synchronisation input Weight : 150 Grams (g) Resolution : 0.18 mm

Send Inquiry

mic-340/DD/M Sensor Price : 23640.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Product Type : mic340/DD/M Sensor Type : mic ultrasonic sensors IP Rating : IP 67 Material : brass sleeve, nickelplated, plastic parts, PBT Features : LCA2 with LinkCopy or LinkControl software Measurement Range : 350 5000 mm Output : 2 x PNP Input : com input Weight : 270 Grams (g) Resolution : 0.18 mm

Send Inquiry

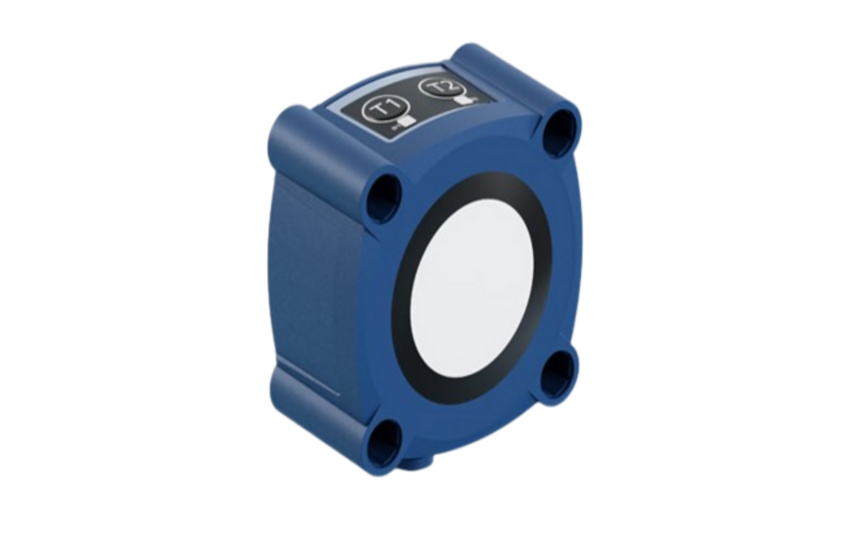

lcs+340/DD Sensor Price : 21300.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Product Type : lcs+340/DD Sensor Type : lcs+ ultrasonic sensors IP Rating : IP 67 Material : PBT Features : Teachin via pushbutton LCA2 with LinkControl Measurement Range : 350 5000 mm Output : 2 x PNP Input : com input synchronisation input Weight : 180 Grams (g) Resolution : 0.18 mm

Send Inquiry

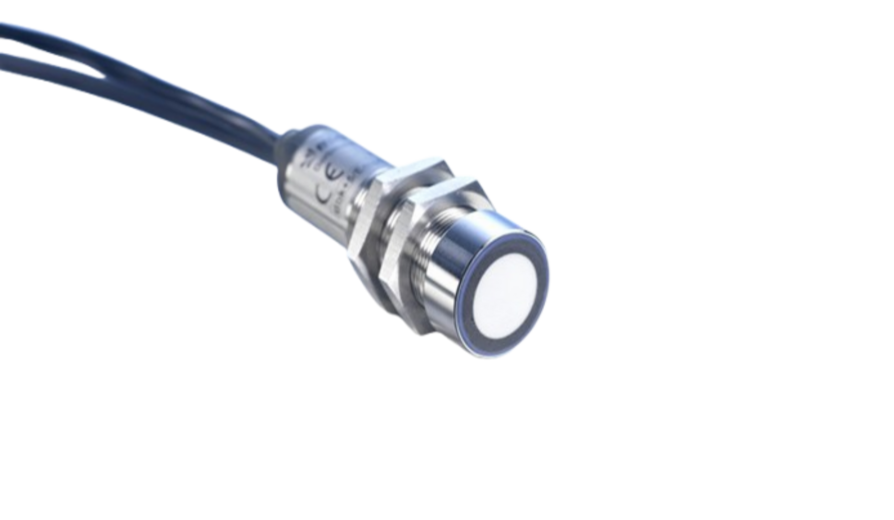

dbk+5/Empf/3CDD/M18 Sensor Price : 35410.0 INR/Number Minimum Order Quantity : 1 Warranty : 1 year Product Type : dbk+5/Empf/3CDD/M18 Sensor Type : dbk+5 ultrasonic double sheet Control IP Rating : IP 65 Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Features : plastic sheets and films up to 5 mm thick*, selfadhesive films, sheet metals up to 2 mm thick*, corrugated card, wafers, PCBs Measurement Range : papers with weights of 100 2,000 g/m2 Output : double sheet output pnp; missing sheet output pnp Input : control input
