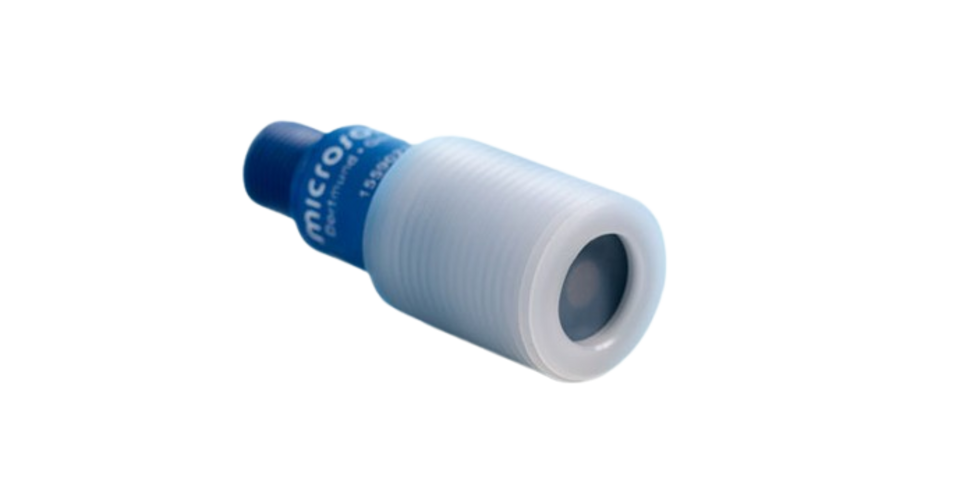

pico+100/TF/U Sensor

27720.0 INR/Number

Get a Price/Quote

Product Details:

Sensor Type pico+TF ultrasonic filling-level sensor
Measurement Range 120 - 1300 mm
Features Teach-in via com input on pin 5 LCA-2 with LinkControl
IP Rating IP 67
Product Type pico+100/TF/U
Material PVDF, PBT
Input com input synchronisation input teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

pico+100/TF/U Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 27720.0 INR/Number

pico+100/TF/U Sensor Product Specifications

Measurement Range 120 - 1300 mm
Product Type pico+100/TF/U
Features Teach-in via com input on pin 5 LCA-2 with LinkControl
Sensor Type pico+TF ultrasonic filling-level sensor
Weight 30 Grams (g)
Material PVDF, PBT
Output analogue output
IP Rating IP 67
Warranty 1 year
Resolution 0.069 mm to 0.38 mm, depending on the analogue window
Input com input synchronisation input teach-in input

pico+100/TF/U Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

piko+100/TF/U

1 x analogue 0-10 V

Measuring Range : 120-1300 mm

Design : Cylindrical M22

Operating Mode : Analogue Distance Measurement

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 200 kHz

Blind Zone : 120 mm

Operating Range : 1000 mm

Maximum Range : 1300 mm

Operating Voltage : 15 V bis 30 V DC, verpolfest

Type of Connection : 5 pin M12 initiator plug
