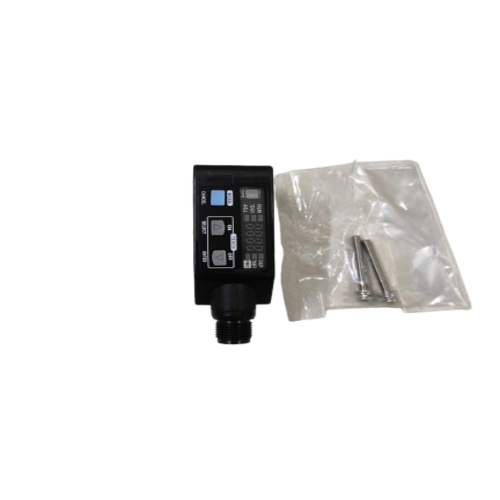

LX-101-P-Z SENSOR
5500.0 INR/Number
Product Details:
- Features Plug-in connector type
- Sensor Type Color mark sensor
- IP Rating IP67 (IEC)
- Product Type Digital Mark Sensor
- Material PVC
- Output PNP
- Voltage 1000 Volt (v)
- Click to View more
X
LX-101-P-Z SENSOR Price And Quantity
- 5500.0 INR/Number
- 1 Number
- 5300.00 - 5500.00 INR/Number
LX-101-P-Z SENSOR Product Specifications
- PVC
- IP67 (IEC)
- 1000 Volt (v)
- Color mark sensor
- Plug-in connector type
- PNP
- Digital Mark Sensor
- 55 Grams (g)
LX-101-P-Z SENSOR Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Sensing range | 10 3 mm0.394 0.118 in |
| Spot size | 1 x 5 mm 0.039 x0.197 in(at 10 mm0.394 insetting distance) |
| Supply voltage | 12 to 24 V DC 10 % Ripple P-P 10 % or less |
| Current consumption | Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage) ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage) |
| Output 1(OUT) | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 1.5 V or less (at 100 mA source current) |
| Output 1:Short-circuit protection | Incorporated |
| Output 1:Output operation | Mark mode: Light-ON / Dark-ON (Auto-setting on teaching) Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching) |
| Output 2(OUT) | - |
| Output 2:Short-circuit protection | - |
| Output 2:Output operation | - |
| Response time | Mark mode: 45 micro s or less Color mode: 150 micro s or less |
| Teaching input | PNP non-contact input - Signal condition: High... +4 V to +V (sink current: 3 mA or less), Low... 0 to +0.6 V, or open - Input impedance: 10 kOhm approx. |
| Digital display | 4-digit red LED display |
| Sensitivity setting | Mark mode: 2-level teaching / Full-auto teaching Color mode: 1-level teaching |
| Fine sensitivity adjustment function | Incorporated |
| Timer function | Incorporated with variable ON-delay / OFF-delay timer, switchable either effective or ineffective (Timer period: 1 to 500 ms, 9 levels variable) |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +55 +14 to +131 (No dew condensation or icing allowed), Storage: -20 to +70 -4 to +158 |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3.0 mm0.118 indouble amplitude (max. 20 G) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directionsthree times each |
| Emitting element | Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm0.025 mil/ 525 nm0.021 mil/ 470 nm0.019 mil) |
| Material | Enclosure: PBT Display cover: Polycarbonate Operation buttons: Silicone rubber Lens: Glass Lens holder: Aluminum |
| Cable | (Note) Mating cable is not supplied with the plug-in connector type. Please order it separately. |
| Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 55 g approx. Gross weight: 120 g approx. |
| Accessory | M4 (length 30 mm1.181 in) screw with washers: 2 pcs. |
