hps+80/DIU/TC/E/G1 Sensor

38130.0 INR/Number

Get a Price/Quote

Product Details:

Features Chemical resistance, COM input, Pressure resistance, Push button(s), LED display, Link control, Multiplex, Synchronization, Temperature compensation
Sensor Type hps+ ultrasonic sensors
Mounting Type 5-pin M12 connector
Measurement Range 80 - 1,000 mm
Product Type hps+80/DIU/TC/E/G1
Material stainless steel
Output 0 - 10 V, 4 - 20 mA, PNP (NC), PNP (NO)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

hps+80/DIU/TC/E/G1 Sensor Price And Quantity

Price 38130.0 INR/Number
Minimum Order Quantity 1 Number

hps+80/DIU/TC/E/G1 Sensor Product Specifications

Product Type hps+80/DIU/TC/E/G1
Sensor Type hps+ ultrasonic sensors
Features Chemical resistance, COM input, Pressure resistance, Push button(s), LED display, Link control, Multiplex, Synchronization, Temperature compensation
Output 0 - 10 V, 4 - 20 mA, PNP (NC), PNP (NO)
Mounting Type 5-pin M12 connector
Material stainless steel
Measurement Range 80 - 1,000 mm

hps+80/DIU/TC/E/G1 Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Connection	5-pin M12 connector
Housing	G1"
Sealing class	IP67
Features	Chemical resistance, COM input, Pressure resistance, Push button(s), LED display, Link control, Multiplex, Synchronization, Temperature compensation
Material	Stainless steel
Measuring range	80 - 1,000 mm
Series	hps+
Output	0 - 10 V, 4 - 20 mA, PNP (NC), PNP (NO)
Version	Distance sensor
Power supply	9 - 30 Vdc

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

mic+600/D/TC/E Sensor Price : 21010.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Product Type : mic+600/D/TC/E Input : com input synchronisation input Weight : 270 Grams (g) Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Sensor Type : mic + ultrasonic sensor Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Material : stainless steel, plastic parts: PBT, TPU Measurement Range : 600 8000 mm Warranty : 1 year Resolution : 0.18 mm

Send Inquiry

mic-130/IU/M Sensor Price : 28500.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Product Type : mic130/IU/M Input : control input Teachin input Weight : 200 Grams (g) Output : 1 x analogue 420 mA + 010 V Sensor Type : mic ultrasonic sensors Features : Teachin via com input on pin 5 LCA2 with LinkControl Material : brass sleeve, nickelplated, plastic parts, PBT Measurement Range : 200 2000 mm Warranty : 1 year Resolution : 0.18 mm to 0.57 mm, depending on the analogue window

Send Inquiry

pico+100/WK/F/A Sensor Price : 15960.0 INR/Number Minimum Order Quantity : 1 IP Rating : IP 67 Product Type : pico+100/WK/F/A Input : com input synchronisation input teachin input Weight : 35 Grams (g) Output : PushPull Sensor Type : pico+ ultrasonic sensors Features : IOLink LCA2 with LinkControl Teachin via com input on pin 5 Material : brass sleeve, nickelplated, plastic parts, PBT Measurement Range : 120 1300 mm Warranty : 1 year Resolution : 0.10 mm

Send Inquiry

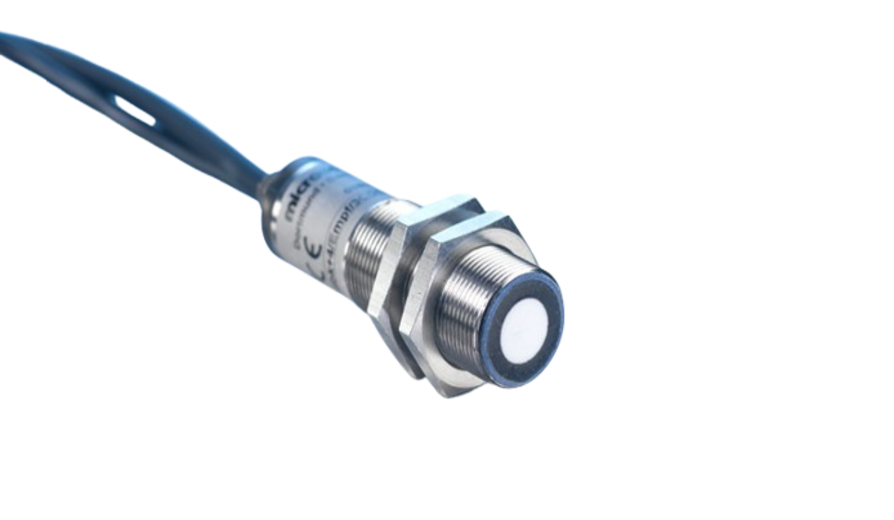

dbk+4/Empf/3BEE/M18 Sensor Price : 31520.0 INR/Number Minimum Order Quantity : 1 IP Rating : I P 65 Product Type : dbk+4/Empf/3BEE/M18 Input : control input Weight : 100 Grams (g) Output : double sheet output npn; missing sheet output npn Sensor Type : dbk+4 ultrasonic doublesheet control Features : Washi, metallaminated sheets and films up to 0.4 mm thick, selfadhesive films, sheet metals up to 0.3 mm thick, fine corrugated card, wafers, PCBs Material : brass sleeve, nickelplated, plastic parts, PBT, PA Measurement Range : papers with weights of 20 2,000 g/m2 Warranty : 1 Year

Send Inquiry
