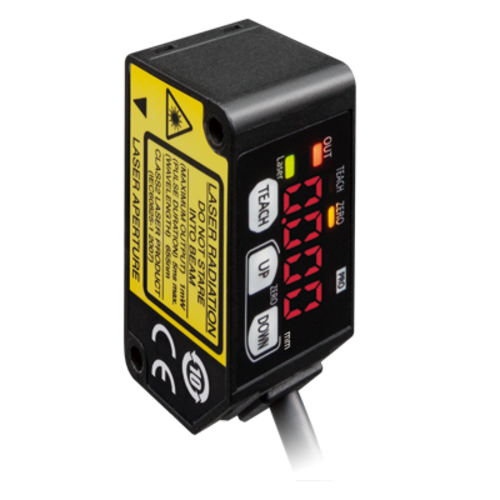

HG-C1100-P Laser Distance Sensor

18000 INR/Number

Get a Price/Quote

Product Details:

Application CMOS type Micro Laser Distance Sensor HG-C
Warranty 1 Year
Sensor Type Measurement center 100mm 3.937 in type
Measurement Range 35mm
Cable Type Yes
Cable Length 2 Meter (m)
Usage & Applications Measurement center 100mm 3.937 in type
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HG-C1100-P Laser Distance Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 18000 INR/Number

HG-C1100-P Laser Distance Sensor Product Specifications

Weight 80 Grams (g)
Product Type HG-C1100-P
Cable Length 2 Meter (m)
IP Rating IP67 (IEC)
Measurement Range 35mm
Cable Type Yes
Material Enclosure: Aluminum die-cast Front cover: Acrylic
Features CMOS type Micro Laser Distance Sensor
Usage & Applications Measurement center 100mm 3.937 in type
Output PNP open-collector transistor
Sensor Type Measurement center 100mm 3.937 in type
Warranty 1 Year
Application CMOS type Micro Laser Distance Sensor HG-C

HG-C1100-P Laser Distance Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Product Number	HG-C1100-P
Part Number	HG-C1100-P
Products Name	CMOS type Micro Laser Distance Sensor
Product details	Measurement center 100mm 3.937 in type
Output	PNP open-collector transistor
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, UL/c-UL Certification (Note) : The UL/c-UL certified products have been shipped since April, 2017.
Measurement center distance	100mm 3.937 in
Measuring range	35mm 1.328 in
Repeatability	70 m 2.756 mil
Linearity	0.1%F.S.
Temprerature characteristics	0.03% F.S.
Light source	Red semiconductor laser Class 2 (IEC / EN/ JIS / GB / KS / FDA) / Class II (FDA)(Note) Max. output: 1mW emission peak wavelength: 655nm 0.026 mil
Beam diameter	120 m
Supply voltage	12 to 24V DCplus or minus 10% Ripple P-P 10%
Current consumption	40 mA or less (at 24V DC supply voltage) 65 mA or less (at 12V DC supply voltage)
