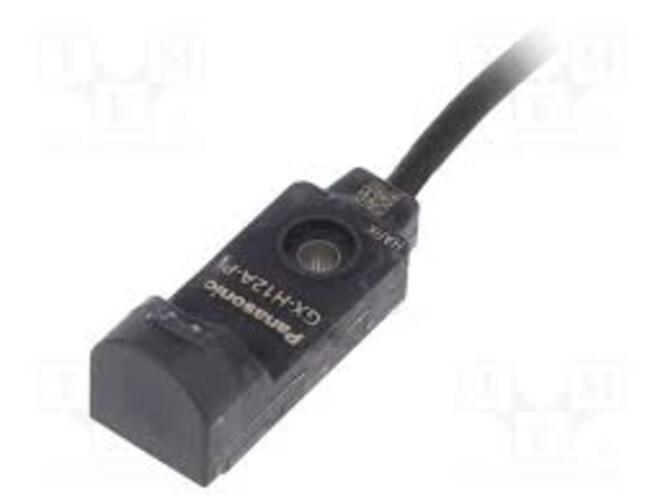

GX-H12A-P Inductive Proximity Sensor

580 INR/Number

Get a Price/Quote

Product Details:

Measurement Range 0 to 3.3 mm
Cable Length 1 Meter (m)
Warranty 1 year
IP Rating IP68 (IEC), IP68g (JEM)
Features Rectangular-shaped Inductive Proximity Sensor
Material Enclosure: PBT Indicator part: Polycarbonate / Polyester
Sensor Type Rectangular-shaped Inductive Proximity Sensor GX-F/H
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

GX-H12A-P Inductive Proximity Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 580 INR/Number

GX-H12A-P Inductive Proximity Sensor Product Specifications

Cable Length 1 Meter (m)
Weight 20 Grams (g)
Warranty 1 year
Measurement Range 0 to 3.3 mm
IP Rating IP68 (IEC), IP68g (JEM)
Output PNP open-collector transistor
Voltage 12 to 24 Volt (v)
Material Enclosure: PBT Indicator part: Polycarbonate / Polyester
Product Type GX-H12A-P
Cable Type Yes
Sensor Type Rectangular-shaped Inductive Proximity Sensor GX-F/H
Features Rectangular-shaped Inductive Proximity Sensor
Application Rectangular-shaped Inductive Proximity Sensor

GX-H12A-P Inductive Proximity Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

Product Number	GX-H12A-P
Part Number	GX-H12A-P
Products Name	Rectangular-shaped Inductive Proximity Sensor
Product details	PNP output
Output:Output operation		Normally open
Max. operation distance	4.0 mm0.158 inplus or minus 8 %
Stable sensing range	0 to 3.3 mm0 to 0.130 in
Standard sensing object	Iron sheet 20 ï 20 ï t 1 mm0.787 ï 0.787 ï t 0.039 in
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Hysteresis	20 % or less of operation distance(with standard sensing object)
Repeatability	Along sensing axis, perpendicular to sensing axis: 0.04 mm0.002 inor less
Supply voltage	12 to 24 V DC +10/-15 % Ripple P-P 10 % or less
Current consumption	15 mA or less
Output	PNP open-collector transistor

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Photoelectric Sensor' category

LD46-UL-735 Luminescence Sensors Price : 55000.0 INR/Number Minimum Order Quantity : 1 Output : PNP L/D selectable Measurement Range : 020m (approximate) Sensor Type : Photoelectric sensor Product Type : Applicative Sensor IP Rating : IP65 Material : Plastic and metal Warranty : 1 year Application : Industrial sensing applications Function : Measurement and detection Weight : Lightweight Features : Compact design Reliable performance Advanced sensing Voltage : 1030V DC Wireless : No

Send Inquiry

EX-L221-P Compact Laser Sensor Price : 5620 INR/Number Minimum Order Quantity : 1 Output : PNP opencollector transistor Measurement Range : 45 to 300 mm Sensor Type : Spot reflective type Product Type : EXL221P IP Rating : IP67 (IEC) Material : Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate Warranty : 1 Year Application : Amplifier Builtin Ultracompact Laser Sensor EXL200 Cable Length : 2 Meter (m) Function : Incorporated (Two sensors can be mounted close together.) Weight : 60 Grams (g) Features : Amplifier Builtin Ultracompact Laser Sensor Voltage : 12 to 24 Volt (v) Cable Type : Yes

Send Inquiry

EX-11A Ultra-slim Photoelectric Sensor Price : 1850 INR/Number Minimum Order Quantity : 1 Output : NPN opencollector transistor Measurement Range : 150mm Sensor Type : Ultraslim Photoelectric Sensor Product Type : EX11A IP Rating : IP67 (IEC) Material : Enclosure: Polyarylate Lens: Polyarylat Warranty : 1 Year Application : Ultraslim Photoelectric Sensor EX10 Ver.2 Cable Length : 2 Meter (m) Function : Thrubeam [Front sensing] Weight : 50 Grams (g) Features : Ultraslim Photoelectric Sensor Voltage : 12 to 24 Volt (v) Cable Type : Yes

Send Inquiry

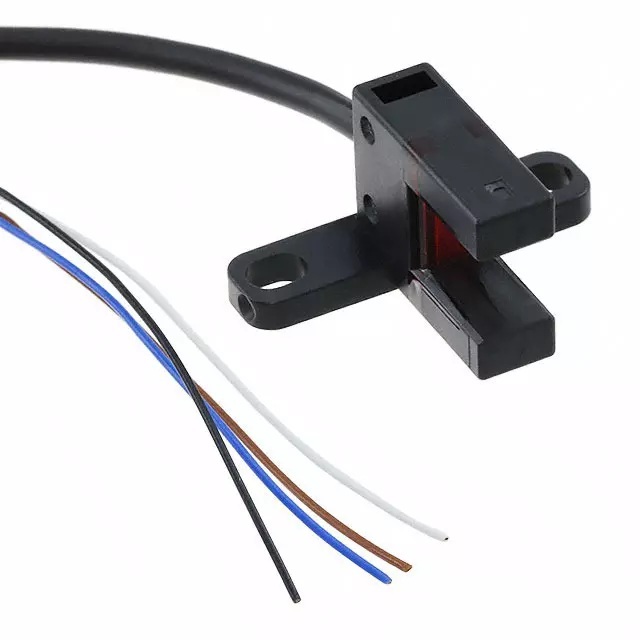

PM-T45-P U-shaped Micro Photoelectric Sensor Price : 580 INR/Number Minimum Order Quantity : 1 Output : PNP opencollector transistor Measurement Range : 6 mm Sensor Type : Amplifier Builtin / Ushaped Micro Photoelectric Senso Product Type : PMT45P IP Rating : IP64 (IEC) Material : Enclosure: PBT Display section: Polycarbonate Warranty : 1 Year Application : Amplifier Builtin / Ushaped Micro Photoelectric Sensor [Compact / Cable type]PM45 Cable Length : 1 Meter (m) Features : Compact / Cable type [T type] Wireless : No Cable Type : Yes
