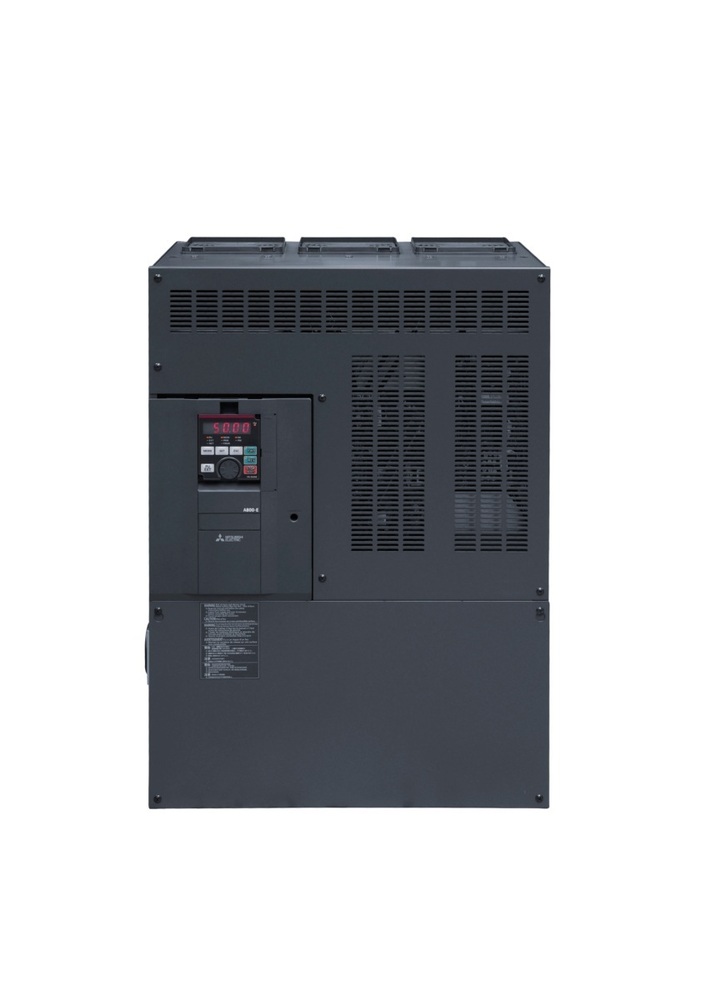

FR-A840-03250-2-60 VFD

Product Description

SeriesFR-A SERIES

TypeFR-A800-E INVERTER

Minimum Rated Voltage (V)380

Min. Permissible Voltage (V)323

Maximum Rated Voltage (V)500

Max. Permissible Voltage (V)550

Current TypeAC

Phases3

Rated Output Current SLD (A)325

Rated Output Current LD (A)260

Rated Output Current ND (A)216

Rated Output Current HD (A)180

Rated Motor Capacity SLD (kW)160

Rated Motor Capacity LD (kW)132

Rated Motor Capacity ND (kW)110

Rated Motor Capacity HD (kW)90

DisplayFR-DU08

Display Type5 DIGITS LED (12 SEGMENT)

PLC FunctionYES

Program Memory6K

Program Memory UnitSTEPS

Integrated Digital Inputs12

Digital Outputs (Transistor)5

Digital Outputs (Relay)2

Integrated Analogue Inputs3

Integrated Analogue Outputs2

IO Type of Terminal BlockSPRING CLAMP

ExpandableYES

RS-485OPTIONAL

USB1+1 MINI

Ethernet Port1

Built-In NetworkMODBUS/TCP

Leakage Current (mA)35(DELTA) / 2(STAR)

Power Loss SLD (W)3600

Power Loss LD (W)2800

Power Loss ND (W)2300

Power Loss HD (W)1850

Standby Power Consumption (W)75

Protection ClassIP00

Frequency Range (Hz)0.2-590
