esp-4/Empf/M12/3CDD/M18 Sensor

33460.0 INR/Number

Get a Price/Quote

Product Details:

IP Rating IP 65
Sensor Type esp-4 label/splice sensor
Features Teach-in via control inputs LCA-2 with LinkControl
Product Type esp-4/Empf/M12/3CDD/ M18
Material brass sleeve, nickel-plated, plastic parts, PBT, PA
Input control input
Output PNP
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

esp-4/Empf/M12/3CDD/M18 Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 33460.0 INR/Number

esp-4/Empf/M12/3CDD/M18 Sensor Product Specifications

IP Rating IP 65
Product Type esp-4/Empf/M12/3CDD/ M18
Input control input
Material brass sleeve, nickel-plated, plastic parts, PBT, PA
Sensor Type esp-4 label/splice sensor
Weight 140 Grams (g)
Features Teach-in via control inputs LCA-2 with LinkControl
Warranty 1 year
Output PNP

esp-4/Empf/M12/3CDD/M18 Sensor Trade Information

Payment Terms Cash on Delivery (COD)
Main Domestic Market All India

Product Description

esp-4/Empf/M12/3CDD/M18

2 x pnp

Design : Cylindrical M12 with a swapped-out ultrasonic transducer

Operating Mode: Label/Splice Detection

Particularities : Receiver for ultrasonic double sheet control swapped-out ultrasonic transducer M12

Means of Measurement : Pulse operation with amplified evaluation

Transducer Frequency : 500 kHz

Blind Zone : 5 mm in front of transmitter and receiver

Type of Connection : 2 m PUR cable, 7 x 0.14 mm

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

mic+35/IU/TC/E Sensor Price : 31030.0 INR/Number Minimum Order Quantity : 1 Product Type : mic+35/IU/TC/E IP Rating : IP 67 Output : analogue output current: 420 mA / voltage: 010 V (at UB 15 V), shortcircuitproof switchable rising/falling Resolution : 0.025 mm to 0.10 mm, depending on the analogue window Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Weight : 150 Grams (g) Sensor Type : mic + ultrasonic sensor Input : com input synchronisation input Material : stainless steel, plastic parts: PBT, TPU Measurement Range : 65 600 mm Warranty : 1 year

Send Inquiry

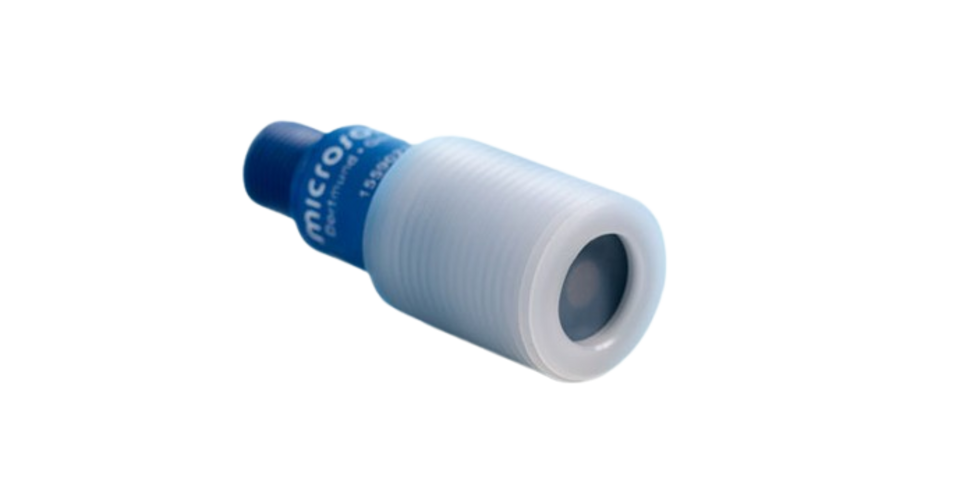

pico+15/TF/F Sensor Price : 24800.0 INR/Number Minimum Order Quantity : 1 Product Type : pico+15/TF/F IP Rating : IP 67 Output : PushPull Resolution : 0.069 mm Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Weight : 30 Grams (g) Sensor Type : pico+TF ultrasonic fillinglevel sensor Input : com input synchronisation input teachin input Material : PVDF, PBT Measurement Range : 120 1300 mm Warranty : 1 year

Send Inquiry

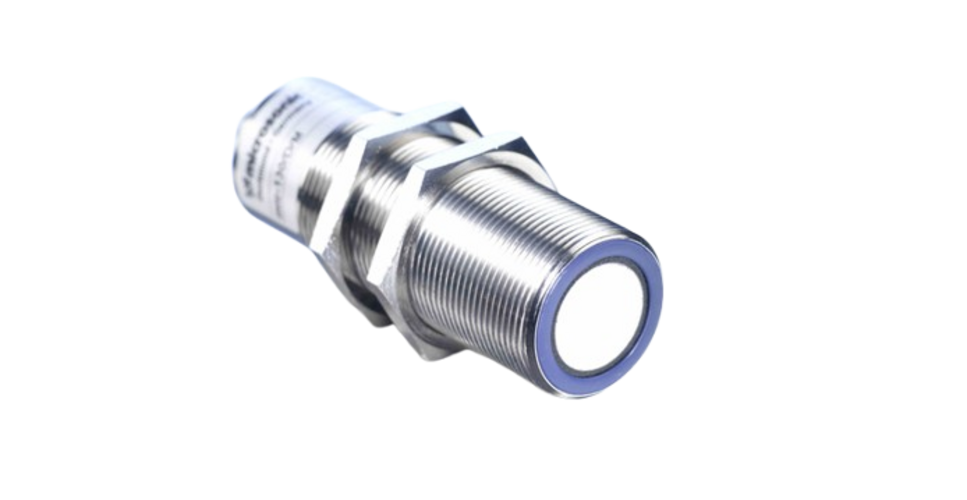

mic-130/D/M Sensor Price : 15470.0 INR/Number Minimum Order Quantity : 1 Product Type : mic130/D/M IP Rating : IP 67 Output : PNP Resolution : 0.18 mm Features : Teachin via com input on pin 5 LCA2 with LinkControl Weight : 200 Grams (g) Sensor Type : mic ultrasonic sensors Input : com input Teachin input Material : brass sleeve, nickelplated, plastic parts, PBT Measurement Range : 200 2000 mm Warranty : 1 year

Send Inquiry

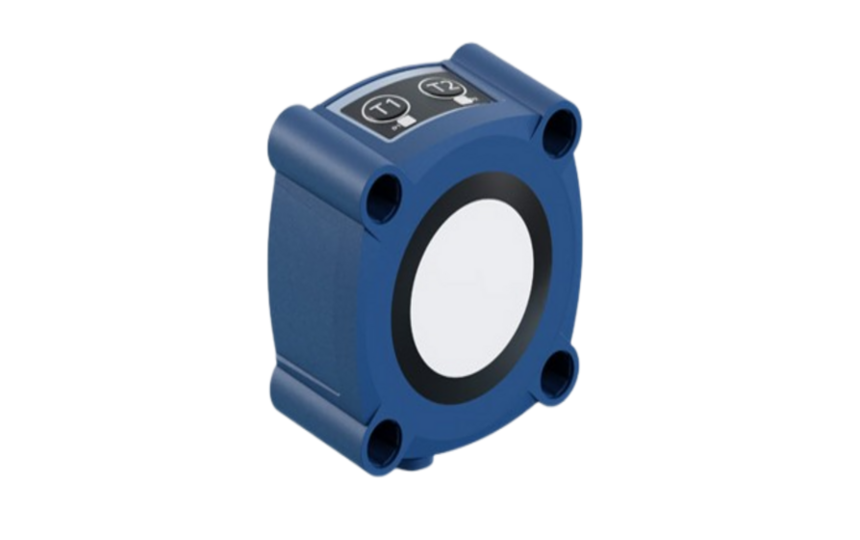

lcs+340/IU Sensor Price : 27140.0 INR/Number Minimum Order Quantity : 1 Product Type : lcs+340/IU IP Rating : IP 67 Output : analogue output Resolution : 0.18 mm to 1.5 mm, depending on the analogue window Features : Teachin via pushbutton LCA2 with LinkControl Weight : 180 Grams (g) Sensor Type : lcs+ ultrasonic sensors Input : com input synchronisation input Material : PBT Measurement Range : 350 5000 mm Warranty : 1 year

Send Inquiry
