esf-1/7/CDF/A Sensor

45530.0 INR/Number

Get a Price/Quote

Product Details:

Features Teach-in and QuickTeach via push-button Teach-in via com input on pin 5 LCA-2 with LinkControl IO-Link
Sensor Type esf-1 ultrasonic label and splice sensors
IP Rating IP 65
Product Type esf-1/7/CDF/A
Material aluminium anodized
Input com input synchronisation input teach-in input
Output Push-Pull; PNP
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

esf-1/7/CDF/A Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 45530.0 INR/Number

esf-1/7/CDF/A Sensor Product Specifications

Input com input synchronisation input teach-in input
Output Push-Pull; PNP
Weight 80 Grams (g)
Warranty 1 year
Material aluminium anodized
Sensor Type esf-1 ultrasonic label and splice sensors
Features Teach-in and QuickTeach via push-button Teach-in via com input on pin 5 LCA-2 with LinkControl IO-Link
Product Type esf-1/7/CDF/A
IP Rating IP 65

esf-1/7/CDF/A Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

esf-1/7/CDF/A

1 x Push-Pull + 1 x pnp

Design : Fork-like

Operating Mode: IO-Link

Label/Splice Detection

Particularities : IO-Link

Means of Measurement : Pulse operation with amplified evaluation

Transducer Frequency : 500 kHz

Type of Connection : 5-pin M12 initiator plug

Min. Cycle Time : 4 ms

System Commands : SP1 Teach-in, SP2 Teach-in, factory Setting

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

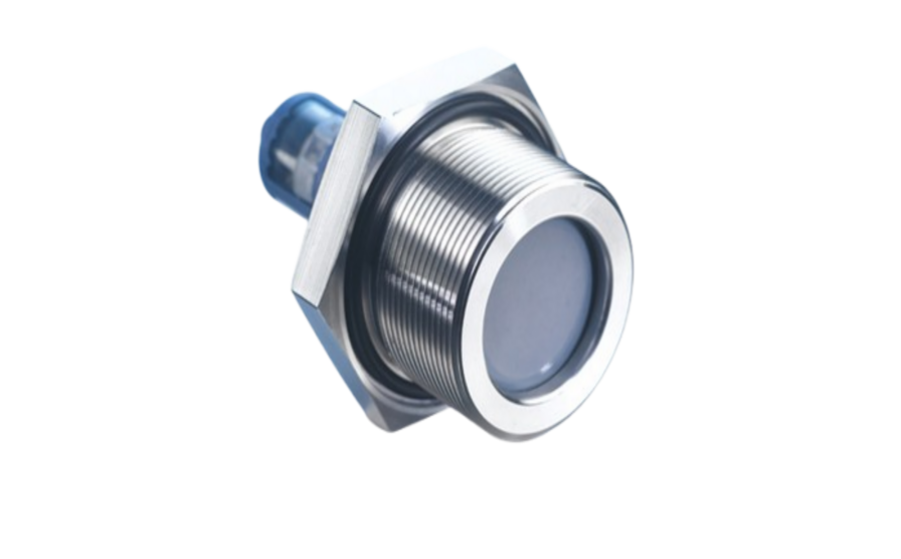

hps+340/DIU/TC/E/G2 Sensor Price : 54570.0 INR/Number Minimum Order Quantity : 1 Weight : 1200 Grams (g) Output : 1 x pnp + 1 x analogue Input : com input synchronisation input IP Rating : IP 67 Product Type : hps+340/DIU/TC/E/G2 Warranty : 1 year Sensor Type : hps+ ultrasonic sensors Material : stainless steel, plastic parts: PBT, TPU Measurement Range : 350 8000 mm Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Resolution : 0.18 mm to 2.4 mm, depending on the analogue window

Send Inquiry

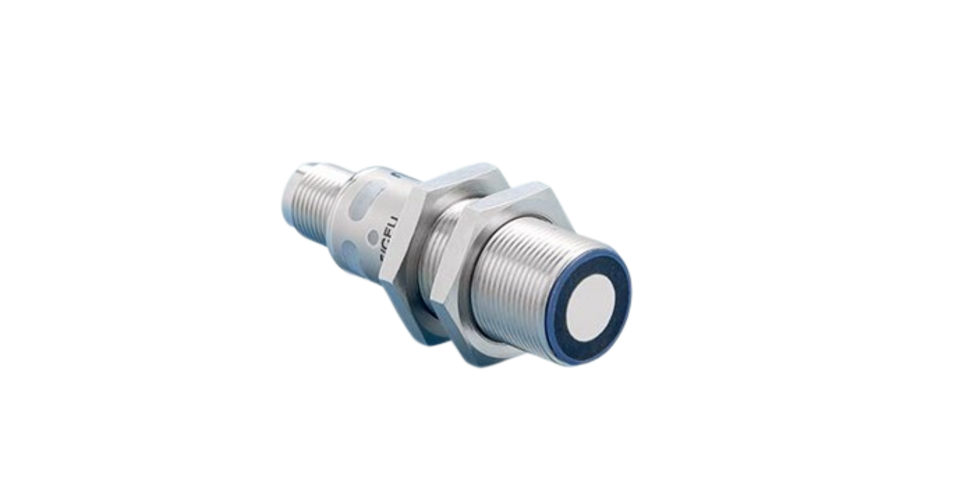

lpc+35/CFF Sensors Price : 20330.0 INR/Number Minimum Order Quantity : 1 Weight : 40 Grams (g) Output : 2 x PushPull Input : com input synchronisation input teachin input IP Rating : IP 67 Product Type : lpc+25/WK/CFF Warranty : 1 year Sensor Type : lpc+ ultrasonic sensors Material : brass sleeve, nickelplated, plastic parts, PBT, PA Measurement Range : 30 350 mm Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Resolution : 0.10 mm

Send Inquiry

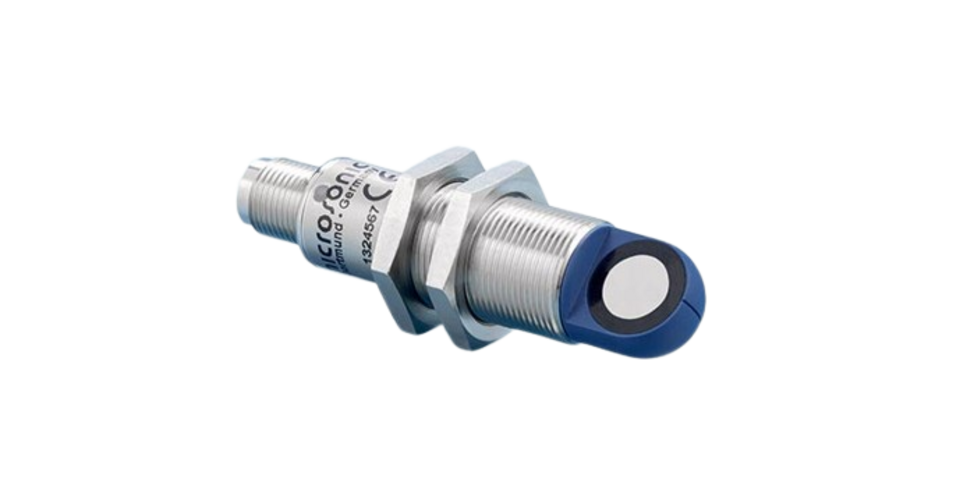

lpc+35/WK/CFF Sensor Price : 20330.0 INR/Number Minimum Order Quantity : 1 Weight : 40 Grams (g) Output : 2 x PushPull Input : com input synchronisation input teachin input IP Rating : IP 67 Product Type : lpc+35/WK/CFF Warranty : 1 year Sensor Type : lpc+ ultrasonic sensors Material : brass sleeve, nickelplated, plastic parts, PBT, PA Measurement Range : 65 600 mm Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Resolution : 0.10 mm

Send Inquiry

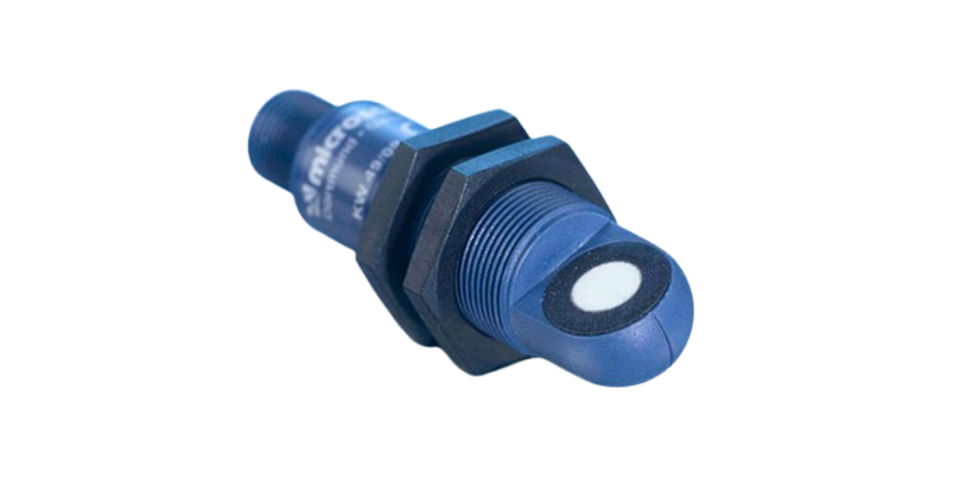

nero-25/WK/CD Sensor Price : 11580.0 INR/Number Minimum Order Quantity : 1 Weight : 20 Grams (g) Output : PNP Input : Teachin input IP Rating : IP 67 Product Type : nero25/WK/CD Warranty : 1 year Sensor Type : nero ultrasonic sensors Material : PBT Measurement Range : 30 350 mm Features : Teachin Resolution : 0.20 mm
