RPL Automation Pvt. Ltd.

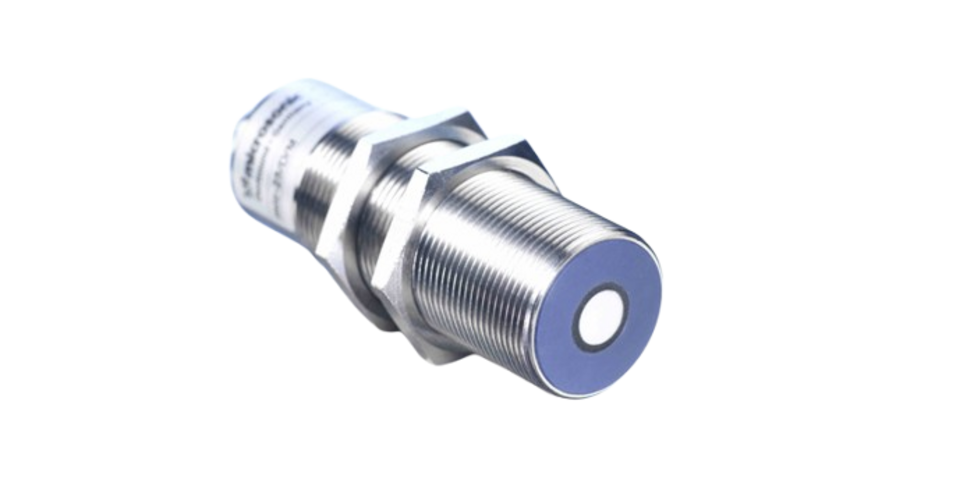

dbk+4/Empf/M12/3CDD/M18 Sensor
33460.0 INR/Number
Product Details:
- Sensor Type dbk+4 ultrasonic double-sheet control
- Measurement Range papers with weights of 20 - 600 g/m2
- Features Washi, metal-laminated sheets and films up to 0.2 mm thick, self-adhesive films
- IP Rating IP 65
- Product Type dbk+4/Empf/M12/3CDD/M18
- Material brass sleeve, nickel-plated, plastic parts, PBT, TPU
- Input control input
- Click to View more
X
dbk+4/Empf/M12/3CDD/M18 Sensor Price And Quantity
- 33460.0 INR/Number
- 1 Number
dbk+4/Empf/M12/3CDD/M18 Sensor Product Specifications
- Washi, metal-laminated sheets and films up to 0.2 mm thick, self-adhesive films
- double sheet output pnp; missing sheet output pnp
- 1 year
- papers with weights of 20 - 600 g/m2
- brass sleeve, nickel-plated, plastic parts, PBT, TPU
- control input
- IP 65
- dbk+4 ultrasonic double-sheet control
- dbk+4/Empf/M12/3CDD/M18
dbk+4/Empf/M12/3CDD/M18 Sensor Trade Information
- Cash in Advance (CID)
- All India
Product Description
dbk+4/Empf/M12/3CDD/M18
2 x pnp
Working range : Papers with weights of 20-600 g/m2
Design : Cylindrical M18 with a swapped-out ultrasonic transducer
Operating Mode : Double sheet control
Transducer Frequency : 500 kHz
Blind Zone: 5 mm in front of transmitter and receiver
Type of Connection : 2 m PUR Cable, 7 x 0.14 mm2
Transmitter/Receiver Spacing : 20-40 mm; Optimal: 20mm +,- 2 mm
