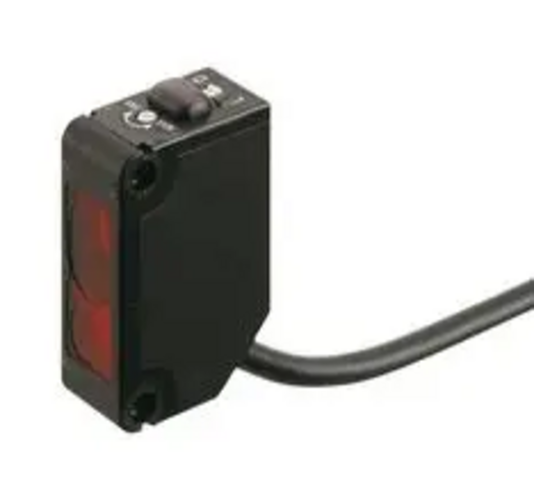

CX-423-P Sensor
2500.0 INR/Number
Product Details:
- Cable Length 2 Meter (m)
- Measurement Range 70 to 300 mm
- Application Diffuse reflective(Narrow-view)
- IP Rating IP67 (IEC)
- Sensor Type Compact Photoelectric Sensor
- Product Type CX-423-P
- Material Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic
- Click to View more
X
CX-423-P Sensor Price And Quantity
- 1 Number
- 2500.0 INR/Number
CX-423-P Sensor Product Specifications
- Diffuse reflective(Narrow-view)
- Enclosure: PBT (polybutylene terephthalate) Lens: acrylic Indicator cover: acrylic
- IP67 (IEC)
- 2 Meter (m)
- 70 to 300 mm
- CX-423-P
- Compact Photoelectric Sensor
- 60 Grams (g)
- PNP open-collector transistor
CX-423-P Sensor Trade Information
- Cash in Advance (CID)
- All India
Product Description
| Product Number | CX-423-P |
|---|---|
| Part Number | CX-423-P |
| Products Name | Compact Photoelectric Sensor |
| Product details | Diffuse reflective(Narrow-view) |
| Response Time | 1 ms or less |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), UL Recognition Certification |
| Sensing range | 70 to 300 mm 2.756 to 11.811 in |
| Sensing object | Opaque, translucent or transparent object(Min. sensing object: 0.5 mm 0.020 in copper wire) |
| Hysteresis | 15 % or less of operation distance |
| Repeatability(perpendicular to sensing axis) | 0.5 mm 0.020 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | PNP open-collector transistor |
| Output: Output operation | Switchable either Light-ON or Dark-ON |
| Output: Short-circuit protection | Incorporated |
