cube-340/FFIU Sensor

31030.0 INR/Number

Get a Price/Quote

Product Details:

Features Teach-in via push-button Teach-in via com input on pin 5 LCA-2 with LinkControl IO-Link
IP Rating IP 67
Sensor Type Cube Ultrasonic Sensors
Measurement Range 350 - 5000 mm
Product Type cube-340/FFIU
Material PA
Input com input synchronisation input teach-in input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

cube-340/FFIU Sensor Price And Quantity

Minimum Order Quantity 1 Number
Price 31030.0 INR/Number

cube-340/FFIU Sensor Product Specifications

IP Rating IP 67
Sensor Type Cube Ultrasonic Sensors
Weight 130 Grams (g)
Resolution 1 mm
Input com input synchronisation input teach-in input
Measurement Range 350 - 5000 mm
Warranty 1 year
Features Teach-in via push-button Teach-in via com input on pin 5 LCA-2 with LinkControl IO-Link
Output analogue output ; Push-Pull, UB-3 V, -UB+3 V, Imax = 100 mA
Material PA
Product Type cube-340/FFIU

cube-340/FFIU Sensor Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

cube-340/FFIU

2 x Push/Pull + 1 x analogue 4-20 mA/0-10

Measuring Range : 350-5,000 m

Design : Cuboidal

Operating Mode : IO-Link

Proximity Switch/Reflective Mode

Analogue Distance Measurement

Particularities : Small Cuboidal Design

IO-Link Version 1.1

QuickLock Mounting Bracket

2nd output switchable

Means of Measurement : Echo Propagation Time Measurement

Transducer Frequency : 120 kHz

Blind Zone : 350 mm

Operating Range : 3,400 mm

Maximum Range : 5,000 mm

Resolution IO-Link : 0.1 mm

Resolution Analogue Output : 0.17 mm

COM Mode : COM2 (38,4 kBaud)

Controls : 2 Push-Buttons

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

crm+130/D/TC/E Sensor Price : 21890.0 INR/Number Minimum Order Quantity : 1 Weight : 150 Grams (g) Sensor Type : crm + ultrasonic sensor Resolution : 0.18 mm IP Rating : IP 67 Measurement Range : 200 2000 mm Warranty : 1 year Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Product Type : crm+130/D/TC/E Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Material : stainless steel, plastic parts: PBT, TPU Input : com input synchronisation input Accuracy : 1 %

Send Inquiry

mic+25/DIU/TC Sensor Price : 35310.0 INR/Number Minimum Order Quantity : 1 Weight : 150 Grams (g) Sensor Type : mic + ultrasonic sensor Resolution : 0.025 mm to 0.10 mm, depending on the analogue window IP Rating : IP 67 Measurement Range : 30 350 mm Warranty : 1 year Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Product Type : mic+25/DIU/TC Output : analogue output, pnp: Imax = 200 mA (UB2V) Material : brass sleeve, nickelplated, plastic parts, PBT, TPU Input : com input synchronisation input Accuracy : 1 %

Send Inquiry

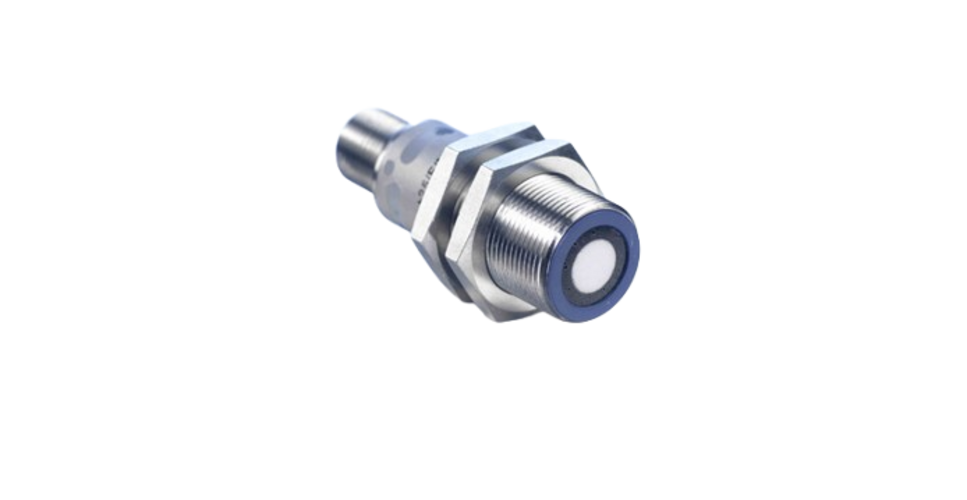

pico+25/F/A Sensor Price : 15960.0 INR/Number Minimum Order Quantity : 1 Weight : 30 Grams (g) Sensor Type : pico+ ultrasonic sensors Resolution : 0.10 mm IP Rating : IP 67 Measurement Range : 30 350 mm Warranty : 1 year Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Product Type : pico+25/F/A Output : PushPull Material : brass sleeve, nickelplated, plastic parts, PBT Input : com input synchronisation input teachin input

Send Inquiry

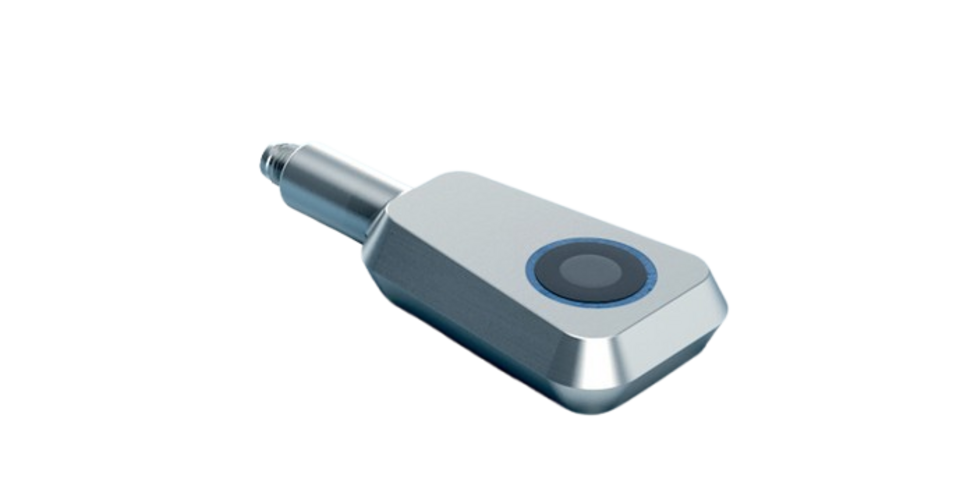

pms-25/CU/A1 Sensor Price : 34920.0 INR/Number Minimum Order Quantity : 1 Weight : 140 Grams (g) Sensor Type : pms ultrasonic sensors Resolution : 0.069 mm to 0.10 mm, depending on the analogue window IP Rating : IP 66, IP 67, IP 68 Measurement Range : 30 350 mm Warranty : 1 year Features : Teachin via com input on pin 2 LCA2 with LinkControl Product Type : pms25/CU/A1 Output : analogue output Material : stainless steel Input : com input synchronisation input teachin input

Send Inquiry
