bks-3/CIU Sensors

38910.0 INR/Number

Get a Price/Quote

Product Details:

Sensor Type ultrasonic edge sensors
Measurement Range 8 mm (4 mm)
Features Teach-in via push-button LCA-2 with LinkControl
IP Rating IP 65
Product Type bks-3/CIU
Material aluminium anodized
Input com input enable input
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

bks-3/CIU Sensors Price And Quantity

Minimum Order Quantity 1 Number
Price 38910.0 INR/Number

bks-3/CIU Sensors Product Specifications

Material aluminium anodized
Sensor Type ultrasonic edge sensors
Weight 140 Grams (g)
Measurement Range 8 mm (4 mm)
Product Type bks-3/CIU
Features Teach-in via push-button LCA-2 with LinkControl
IP Rating IP 65
Input com input enable input
Resolution 0.025 mm
Output analogue output

bks-3/CIU Sensors Trade Information

Payment Terms Cash in Advance (CID)
Main Domestic Market All India

Product Description

bks-3/CIU

1 x analogue 4-20mA + 0-10 V

Working Range : 8 mm (+,-4mm)

Design : Fork like

Operating Mode : Path Edge Detection

Means of Measurement : Pulse Operation with Amplitude Evaluation

Transducer Frequency : 200 kHz

Blind Zone : 7 mm in front of transmitter and emitter

Operating Voltage UB: 20-30 V dc, Reverse Polarity Protection

Type of Connection : 5-pin M12 initiator plug
Output 1 : Analogue Output
Current : 4-20 mA/ Voltage : 0-10V, Short-Circuit-Proof
Switchable Rising / Falling
Fork Width : 30 mm
Fork Depth ; 33 mm
Ultrasonic Transducer : Polyurethane Foam, Epoxy Resin with glass contents

Tell us about your requirement

Price:

Quantity *

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Ultrasonic Sensor' category

crm+25/D/TC/E Sensor Price : 21890.0 INR/Number Minimum Order Quantity : 1 Output : switching output pnp: Imax = 200 mA (UB2V) NOC/NCC adjustable, shortcircuitproof Input : com input synchronisation input IP Rating : IP 67 Product Type : crm+25/D/TC/E Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Measurement Range : 30 350 mm Material : stainless steel, plastic parts: PBT, TPU Sensor Type : crm + ultrasonic sensor Resolution : 0.025 mm Weight : 150 Grams (g) Warranty : 1 year

Send Inquiry

hps+340/DIU/TC/E/G2 Sensor Price : 54570.0 INR/Number Minimum Order Quantity : 1 Output : 1 x pnp + 1 x analogue Input : com input synchronisation input IP Rating : IP 67 Product Type : hps+340/DIU/TC/E/G2 Features : Teachin and numeric configuration via TouchControl LCA2 with LinkControl Measurement Range : 350 8000 mm Material : stainless steel, plastic parts: PBT, TPU Sensor Type : hps+ ultrasonic sensors Resolution : 0.18 mm to 2.4 mm, depending on the analogue window Weight : 1200 Grams (g) Warranty : 1 year

Send Inquiry

pms-15/CF/A1 Sensor Price : 31000.0 INR/Number Minimum Order Quantity : 1 Output : PushPull Input : com input synchronisation input teachin input IP Rating : IP 66, IP 67, IP 68 Product Type : pms15/CF/A1 Features : Teachin via com input on pin 2 LCA2 with LinkControl IOLink Measurement Range : 20 250 mm Material : stainless steel Sensor Type : pms ultrasonic sensors Resolution : 0.10 mm Weight : 140 Grams (g) Warranty : 1 year

Send Inquiry

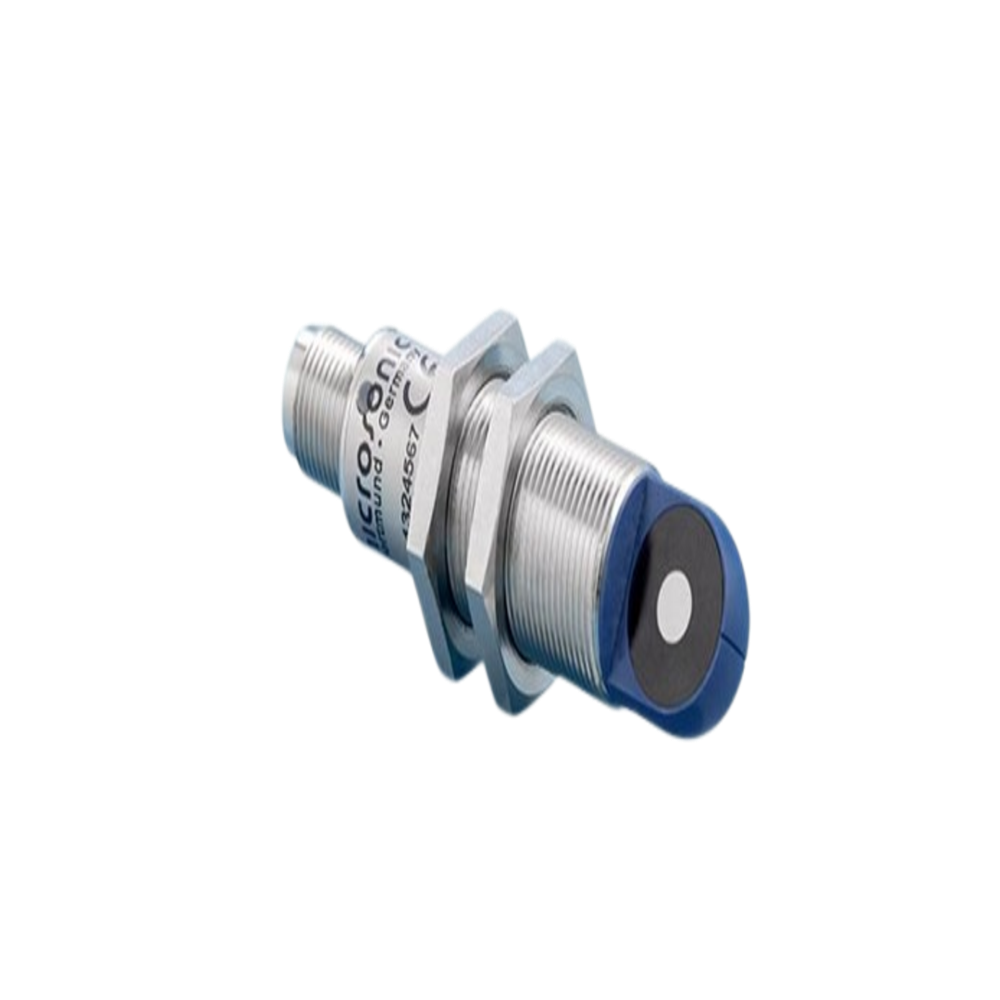

lpc+15/WK/CFF Sensor Price : 20330.0 INR/Number Minimum Order Quantity : 1 Output : 2 x PushPull Input : com input synchronisation input teachin input IP Rating : IP 67 Product Type : lpc+15/WK/CFF Features : Teachin via com input on pin 5 LCA2 with LinkControl IOLink Measurement Range : 20 250 mm Material : brass sleeve, nickelplated, plastic parts, PBT, PA Sensor Type : lpc+ ultrasonic sensors Resolution : 0.10 mm Weight : 40 Grams (g) Warranty : 1 year
